4X4 50HP Convenient Operation Diesel Engine Farm Equipment Cabin Tractor

Product Description

4x4 50hp convenient operation diesel engine farm equipment Cabin tractor
TY chassis tractor is a group tractor for general purpose. It can be used in plain, hill, mountain area, paddy field, orchard, grassland and meadow.It can accomplish various farm tools such as plow, harrow,
planter, harvester and trailer,etc.Following is TY chassis tractor details, please check.
LIFTOR Tractor Features:
1. LIFTOR series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation;
6. Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
7. Hydraulic power steering(4WD) makes it easy to control and reduce the labor strength of operator.
Tractor Parameter:

We use TY Chassis to manufacture 30hp, 35hp, 40hp and 45hp tractor.

TY Chassis Tractor Configuration

Model

HX304

HX354

HX404

HX454

Power

30 HP

35 HP

40 HP

45 HP

Wheel Drive

4

4

4

4

Dimension (LxWxH)

3350x1500x1860mm

Weight

1200 KG

1250 KG

1300 KG

1350 KG

Front Wheel Tread

850~1300mm

Rear Wheel Tread

960~1300mm

Wheel Base

1750 mm

Minimum Ground Clearance

330 mm

Gear Shifts

8F+2R

Tire Size

6.5-16/9.5-24 Inch

Engine Specification

Engine Brand

Lai Dong or Xi Chai

Engine Cylinder Number

3

3

4

4

Engine Type

Water Cooled, Vertical, Direct Injection, 4 Stroke

Rated Power

22.06 KW

25.70 KW

29.40 KW

33.10 KW

Rated Revolution

2300 r/min

Start Way

Electric Start

Transmission Box

(4+1)x2

Clutch

Single Chip, Dry Friction, Single Action, Constant Conjunction

PTO Speed

6 Splines, Single Speed

We can install TZ-3 Model Front End Loader in TY Chassis Tractor, following is TZ-3 Model Front End Loader Information.

Size

Max. Dump Height

Max. Dump Distance

Bucket Rollback Angle

Max. Unloading Angle

Max. Scraping Depth

Lifting Time To Pivot Pin

Descending Time

Bucket Width

Bucket Volume

4100×1600×1580 mm

2300-2800 mm

900 mm

420

470

100 mm

7s

3.5s

1300mm

0.20m

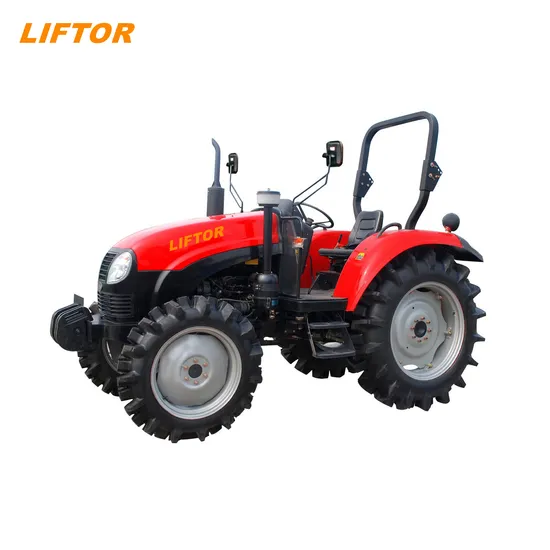

LIFTOR Tractor Pictures:
Optional Implements for Tractor :
About US:
"Liftor Enterprises" is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage,intelligent industrial system, agriculatural tractor, lifting machine and wheel loader. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate.Our main equipment are agriculatural tractor, lifting machine, wheel loader and forklift. It is widely used in various places of modern logistics.
FAQ:
1. Manufacturer or Trading Company?We are leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
2. MOQ: Mini tractor: 8 units; Middle tractor(25-40hp): 2 units; Above 50hp: 1 unit
3. Spare Parts: Free toolbox and easy damaged parts.
4. Shippment: We can help you arrange shippment.
5. Delivery Time: Usually 25 days. In peak season,30-40 days
6. Warranty Time: Complete service system, 12 months since arrival of destination port
7. Payment Terms: We accept 30%T/T in advance, and 70% T/T before delivery
8. Tractor Options: Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
9. Tractor Logo: We have our own logo. And we also can put your logo for free.
10. Package and Loading: (1).complete tractor package: 2 units/20GP, 4 units/40HQ;(2).Iron Frame Package: 8 units/20GP, 16 units/40HQ
11. Tractor Implements: Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
12. Part supply: Complete Parts Workshop, and can supply all parts
