High Speed Paper Drinking Straw Making Machine
| US$15,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SW-XG50
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
50-60m/Min
Wall Thickness of Paper Tube
0.5-1mm
Certification
CE
Condition
New
Winding Type
Three Head Two Belts
Cutting System
Numerical and Multi-Blades
PLC
Sanwin
Servo Motor
Schneider
Inverter
Schneider
Touch Screen
Sanwin
Voltage
3p, 380V, 50Hz
Weight
1400kgs
Dimension
4000*1500*1200mm
Power
7kw
Speed
50-60m/Min
Transport Package
as Requested
Specification
50
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
84418090
Production Capacity
500PCS/Year
Product Description
High Speed 70m/min Multi Cutters Paper Straw Making Machine Descriptions:This Machine is suitable for producing different sizes of paper straws and very small paper tubes.
[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
[4] Paper and glue stand is Integral Type. Euipped with Auto Paper Connection system and Glue Heating system. Improved machine running speed.
Technical Parameter:
| Technical Parameter | Control System | |||||
| 3 layers | Main Servo Motor | Schneider 1.5kw*2 | ||||
| 4-12mm | Motion controller | Panel Master | ||||
| 0.3-1mm | Touch Screen | Panel Master | ||||
| 0-60m/min; Max. 70m/min | Language | English | ||||
| Two noses single belt | Electric Components | Schneider | ||||
| Stainless steel | Pneumatic Components | Air Tac | ||||
| By Servo Driver | Servo Motor | Schneider | ||||
| Multi-blades; 7 pcs online | Servo Driver | Schneider | ||||
| Optional | Guide Rail | THK | ||||
| Servo motor synchronism tracking | Slider | THK | ||||
| Bearing | NSK | |||||
| Automatically | Length fixing | Encoder | ||||
| 1-2 People | Configuration | |||||
| 0.6Mpa | Manual Paper Reel Stand | 3 Layers | ||||
| As agreed | Gluing Unit | 3 Layers | ||||
| Measurement & Weight | Belt 5pcs | |||||
| 4000*1500*1200mm | Mandrel Shaft | 2 Pieces | ||||
| 8000*5000mm | Extra blades | 5 Pieces | ||||
| 1400kgs | Useful Tool | 1 Set | ||||
Paper Drinking Straws

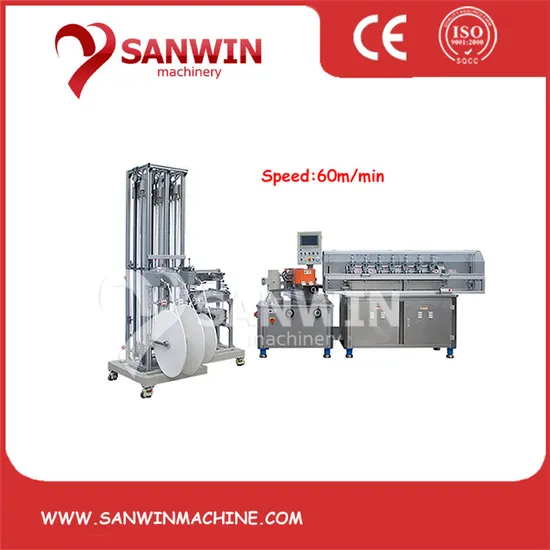

Machine Photo:
Machine Details:
1.-Integral Type Paper Reel Stand & Glue Unit
(Equipped with Auto Paper Connection & Glue Heating)
2. 7PCS CNC Multi-knives Inline Cutting System
3.Winding Part
4.L type collector
Or Dryer(optional)
Our Workshop
Our Customer:
Packaging & Shipping
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
Contact us:
Contact: Ms Nancy
Mobile : 0086-15868035456
Website:sanwinmachine.en.made-in-china.com
Add:Rui'an City ,Zhejiang Province,China
