Multi Spindles 5 Axis Roary Wood CNC Router for 3D Products

Multi Spindles 5 Axis Roary Wood CNC Router for 3D Products

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
JCW1325R-10H
Spindle Number
1, 4, 6, 8, 10, 12
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE, BV, TUV
Customized
Customized
Condition
New
Color
Customized
Machine Name
CNC Wood Router
Application
Wood Chair Table Sofa Legs, Sculptures...
Spindle
Air or Water Cooling Spindle
Motor
Japan Yaskawa Servo Motor
Software
Powermill with Post Processor
System
5 Axis Taiwan Syntec
Working Size of Each Rotary Axis
1200mm Length, 300mm Diameter (Can Be Customized)
Rotary Axis Quantity
8 (Option:1, 4, 6, 10, 12)
CNC Router Type
5 Axis (Option: 4 Axis)
Option
3D Scanner
Transport Package
Wood Case and Steel Support
Specification
4.6L x 2.26W x 2.3H meters
Trademark
CHAODA
Origin
Linyi
HS Code
8464909000
Production Capacity
1000 Set / Month

Product Description

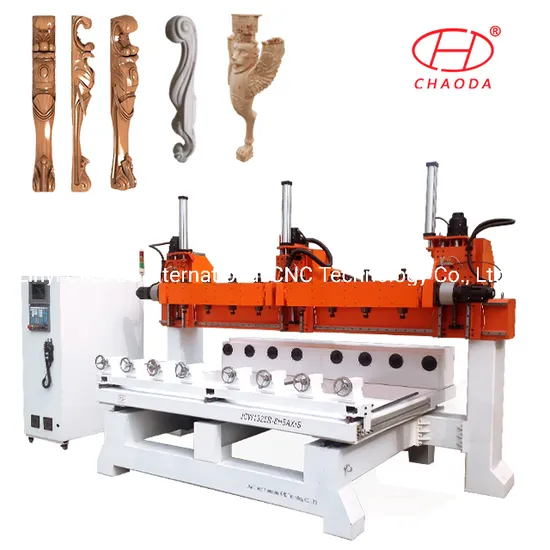

Multi Spindles 5 Axis Roary Wood CNC Router for 3D Products

This item is very suitable for furniture bulk production, multi heads can work at the same time, also can work alone, many times increasing efficiency. Table movement, long time use no distortion, the more precise positioning accuracy. Each spindle can hold two tools, one tool for rough machining, one tool for finish machining ,which is equivalent to Auto Tool Changer. Simultaneous 5 axis Syntec control system, can make more complex 3d jobs. With a removable table, when you process plane material, just put the table on; when you process column /cylinder, just take off the table. Well compatibility in software: all kind of 3D carving softwares. We can make Multi heads machine with any working size according to customers' specific requirements.
Model No. JCW1325R-8H 5AXIS
Machine structure
Heavy duty steel structure
Table Removable; T-slot with clamps
Rotary working size 300mm diameter,1200mm length * 8 PCS
Flat working size 300mm width,1200mm length * 8 PCS
Spindle power 3.5kw double head air cooled spindle
Max moving speed 20m/min
Max working speed 15m/min
Resolution 0.001mm
Control system 5 axis Syntec
Motor Japan YASKAWA Servo motor and driver
Inverter Taiwan Delta
Max Burden weight 1500kg
Oil system Automatic
Voltage AC380V,3 phase,50Hz

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair
handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
