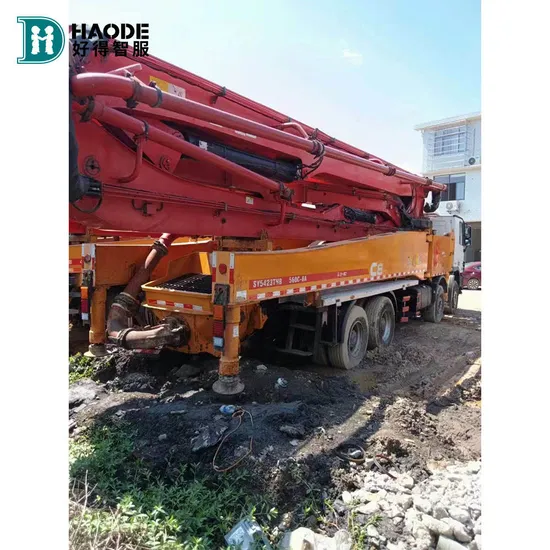

Sany Sym5423thb Used 56m Large Displacement Mortar China Concrete Pumps Machine

Sany Sym5423thb Used 56m Large Displacement Mortar China Concrete Pumps Machine

US$95,000.00-135,000.00 1 sets (MOQ)

Basic Info.

Model NO.
SYM5442THBEB
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000
Condition
Used
Color
White
Max. Speed
80km/H
Max. Horizontal Conveying Distance
55.9m
Displacement
12.94 L
Dimensions
13850*2500*4000
Showroom Location
None
Weight
425000 Kg
Engine Type
Om501la / 3
Brand
Sany
Video Outgoing-Inspection
Provided
Year
2016
Total Weight
41800kg
Product Name
Concrete Pump Truck
Max. Pumping Height
62 M
Maximum Net Engine Power
300kw
Power
315/1600rpm
Transport Package
Standard Packing
Specification
steel
Trademark
sany
Origin
China
HS Code
8429521200
Production Capacity
10000 Piece/Pieces Per Month

Product Description

Complete vehicle parameters

Overall length
14080mm
Overall width
2530mm
Overall height
4000mm
Total weight
44000kg
Pumping system parameters

Theoretical concrete displacement low pressure
180m³/h
Theoretical concrete displacement high pressure
125m³/h
Theoretical pumping pressure low pressure
8.3Mpa
Theoretical pumping pressure high pressure
13Mpa
Theoretical pumping times low pressure
29
Theoretical pumping times high pressure
19
Inner diameter of conveying cylinder
260mm
Stroke of conveying cylinder
2100mm
Hydraulic system
open
System oil pressure
32Mpa
Oil tank volume
780L
Water tank volume
700L
Conveying pipe diameter
125mm
Length of hose at end
3m
End hose diameter
125mm
Chassis parameters

Chassis brand
sany
Chassis model
SYM5423THB1F
Engine model
Cummins X12NS6B470
Maximum net engine power
348/1900kW/rpm
Emission standard
National VI
Fuel tank volume
500L
Displacement
12.94L
Max speech
90km/h
Key parameters

Number of bridges
4
Chassis
sany
Vertical height of boom
40.1m
