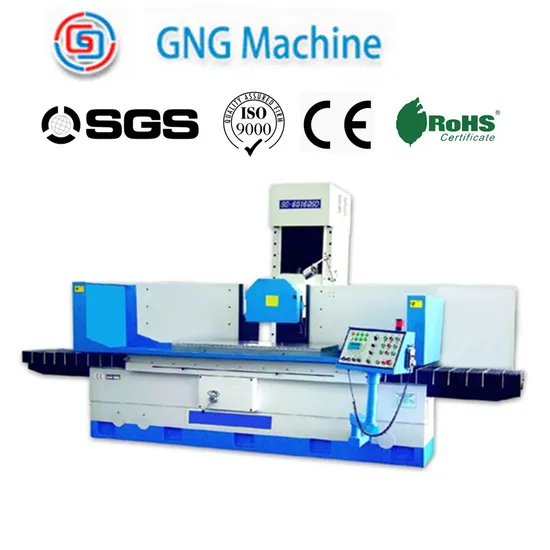

PLC CNC Column Moving Surface Grinder
| US$94,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG80400SD
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Speed of Table Longitudinal Movement
5-25m/Min
Table Size(Wxl)
810X4000(mm)
Max. Grinding(Wxl)
810X4000(mm)
Height of Machine
2800/3000(mm)
Weight
22000kg
Transport Package
Carton
Specification
CE ISO
Trademark
G&G
Origin
China
HS Code
8458910000
Production Capacity
200/Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 810
Max. Grinding Length:4000
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SG80400SD
Voltage: 380V
Power(W): 17000
Dimension(L*W*H): 2000X2100X2175mm
Weight: 3300kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
Worktable sizeL600X350
Spindle power: 5.5KW
| SG SGA plc cnc column moving surface grinder | |||
| Item/Model | Unit | SG80400SD | |
| SG80400CNC | |||
| table size(WxL) | mm | 810X4000 | |
| max. grinding(WxL) | mm | 810X4000 | |
| max. distance between spindle center line and worktable surface | mm | 800/1050 | |
| magnetic chuck size (optional equipment) | mm | 800x1000x4 | |
| speed of table longitudinal movement | m/min | 5-25 | |
| wheel head cross moving | auto feed | mm/t | 1-30 |
| rapid speed | m/min | 0.05-2 | |
| hand wheel feed | mm/div | 0.005 | |
| wheel head vertical moving | auto feed | mm/t | 0.005-0.05 |
| rapid speed | mm/min | 0.05-2 | |
| feed of handwheel | mm/div | 0.005 | |
| wheel | speed | rpm | 960(1450) |
| size(ODxWxID) | mm | 500x100x305 | |
| motor of spindle | kw | 18.5 | |
| max. loading capacity of worktable with chuck | kg | 6000 | |
| total rated power | kw | 38.5 | |
| height of machine | mm | 2800/3000 | |
| floor space(LxW) | mm | 13500x3600 | |
| gross weight | kg | 22000 | |
