Automatic Resin Feeder Plastic Material Feeding Machine Vacuum Hopper Loader for PP PE Pellets

Product Description

Automatic Resin Feeder Plastic Material Feeding Machine Vacuum Hopper Loader for PP PE Pellets Product Description

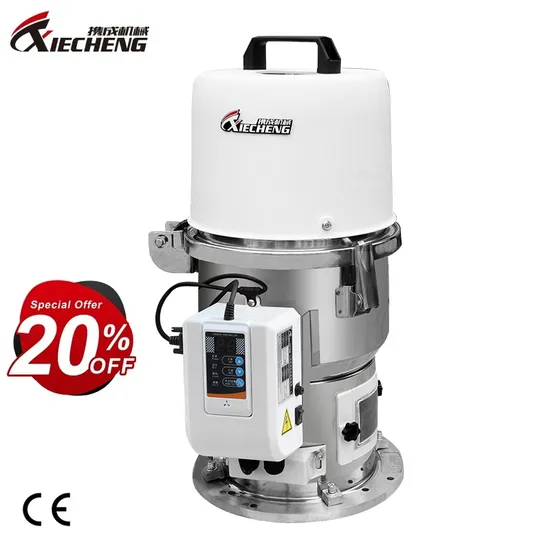

Euro Hopper Loader
Self-contained hopper loaders are Euro design with stainless steel hopper to avoid material contamination. In addition, it has an attractive appearance, a sound-proof motor cover to reduce noise level and a top handle to enable convenient movement. Also the remote operation has been realized by using a detachable control panel.
Product Specifications

Model		XC-X300G
Motor	Model	Carbon Brush
	Specification	1.1kw/1.3hp 1φ
Conveying capacity (kg/hr)		300
Loading Distance (m)		3.5
Static Wind Pressure (mm/H2O)		1300
Storage Tank Capacity (L)		7.5
Conveying Tube Inner Diameter (mm)		φ38
The Attached Hoses (mm)		φ38mm×3.5m 1pcs
Dimensions L x W x H(cm)		42x34x57
Weight (kg)		12

If you want more sizes, please contact us for details
CONTACT SUPPLIER
Product Details
01 Motor
Adopted carbon brush motor, high rotating speed, large air volume, small size, convenient to move and easy to install.
02 Controller
Cable remote controller, easy to operate, with auto cleaning function.
03 Stainless Steel Material
All stainless steel contact parts, to ensure no pollution in material conveying.
04 Filter System
With cloth type filter and auto spray cleaning and dust removal device, to extend the service life of the motor.
05 Humanized Design
Hopper and bottom base can be adjusted by any direction.
06 Magnetic Reed Switch
Adopt magnetic reed switch to control, sensitive induction and stable operation.
