CNC Turning Center CNC Machinery Br-570 Slant Bed CNC Lathe Machine Slant Bed Lathe

Product Description

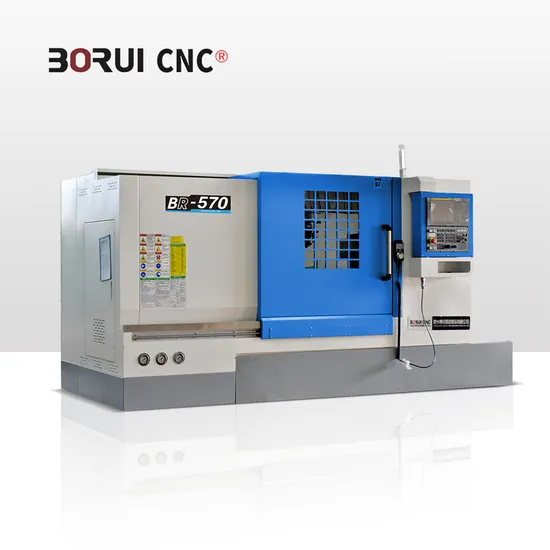

CNC Turning Center CNC Machinery Br-500 Br-570 Slant Bed CNC Lathe Machine

Product Description
The machine is the machine is suitable to process all kinds of small and middle-size shaft and plate work piece,and could also turn various threada,circle arc,circular cone,inside and outside surface of revolved body.this machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearings and so on.
CNC Lathe Features
1. Highter accuracy Taiwan linear guideways
2. Highter speed spindle unit,optional homemade spindle
3. Highter rigidity cast iron
4. Integrated automatic lubrication
5. One-piece casting slat bed cnc lathe
Product Parameters

Machine Model	Model	BR570-520	BR570-750
Major parameter	The maximum turning diameter on the bed	Φ570	Φ570
	maximum machining diameter	Φ500	Φ500
	Maximum machining diameter on the tool holder	Φ230	Φ230
	Maximum processing length	520(8″)	750(8″)
Spindle and chuck parameters	Spindle head form (optional chuck)	A2-6(8″)	A2-6(8″)
	Recommended spindle motor power	11-15KW	11-15KW
	Spindle speed	4200rpm	4200rpm
	Spindle hole diameter	Φ66	Φ66
	Bar diameter	Φ52	Φ52
Feed section parameters	X/Z axis screw specifications	3210/4010	3210/4010
	X-axis limit travel	270	270
	Recommended X-axis motor torque	11N.M	11N.M
	X/Z axis rail specifications	45/45	45/45
	Z axis limit travel	610	810
	Recommended Z-axis motor torque	11 N.M	11 N.M
	X, Z axis connection mode	Direct	Direct
Turret or Gang	Optional turret (special configuration)	CLT-100-12T	CLT-100-12T
	Recommended turret center height dimension	100mm	100mm
Tailstock	Socket diameter	80	80
	Socket travel	80	80
	Tailstock maximum stroke	480	480
	Tailstock sleeve tapered hole	MT5#	MT5#
Overall Dimension	Bed type and inclination	Integrated/30°	Integrated/30°
	Machine size(L * W * H)	1800×1320×1438	2100×1386×1435
Weight	Weight (approx. weight)	2500kg	2700kg

Details Display


Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
