Rubber Floor Tiles Molding Press, Tile Vulcanizing Press

Rubber Floor Tiles Molding Press, Tile Vulcanizing Press

US$17,700.00
1-4 sets
US$17,600.00
5-9 sets
US$17,500.00
10+ sets

Basic Info.

Model NO.
XLB-550*550, XLB1100*1100, XLB-1200*1200
Certification
CE, ISO, SGS
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Column/ Frame
Name
Rubber Vulcanizing Press
Clamping Force
100,200,500,1000,1500tons
Heating System
Oil, Steam, Electrical
Heaing Plates
#45 Steel
Piston Material
Chilled Cast Iron
Cylinder Material
Cast Steel
Working Layers
1,2,3,4 Customized
Motor Power
Dpends on The Machine Model
Hydraulic Valves
China, Japan, Taiwan, Germany Brand
Hydraulic Pump
China, Japan,Denmark, Germany Brand
Transport Package
Seaworth Package
Specification
Customized
Trademark
OULI MACHINE
Origin
China
HS Code
8477800000
Production Capacity
300 Sets Per Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg

Product Description

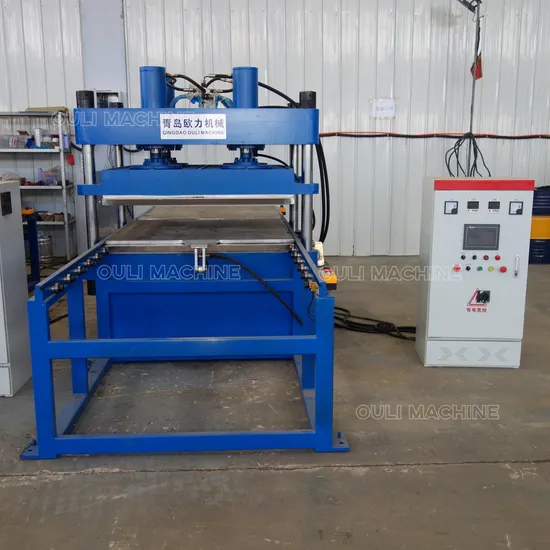

Rubber Floor Tiles Molding Press, Tile Vulcanizing Press
Product Description 1.Product Description
Rubber flooring tiles product line is one type of environmental type rubber machine , it is used to process the waste tire rubber granules to be different types of rubber flooring tiles by vulcanizing and solidifying . Meanwhile , it can also process the PU granules , EPDM granules and nature rubber to be tiles . Generally we can customize the machine according customer need.
Rubber Door Floor Tiles Vulcanizing, Mat Hydraulic Curing Press, Frame Molding Press Detailed Photos

Rubber Door Floor Tiles Vulcanizing, Mat Hydraulic Curing Press, Frame Molding Press Rubber Door Floor Tiles Vulcanizing, Mat Hydraulic Curing Press, Frame Molding Press 2. Manufacturing Technique Product Parameters 3. Technical parameter of Rubber/Plastic tile vulcanizing press machine
Parameter/model XLB-D 550x550x4 XLB-D 1100x1100x1 XLB-D 1100x1100x2
Structure Column Column Frame
Plate size (mm) 550x550 1100x1100 1100x1100
Plate QTY 5 2 3
Working layer 4 1 2
Motor power(kw) 3 5.5 5.5
Heating power(kw) 18 26.4 39.6
Plate distance (mm) 200 200 200
Piston stroke (mm) 600 200 400

Size (mm)
Length 800 1300 1600
Width 1600 3300 3300
Height 1900 1800 3000
Weight (KG) 2000 5000 8000
Our Advantages 4.Our Advantages
OULI MACHINE Frame plate: The material is made of Q235A steel plate with overall numerical control cutting, and the surface is sandblasted. OULI MACHINE Oil cylinder; The material of the oil cylinder is high quality QT500-7, ductile iron QT-500 is passivated after aging, or forging material is used, tensile strength ≥50kgf/mm The plunger is made of LG-P chilled alloy material, which has high surface hardness and is not easy to wear. The depth of the chilled layer is 8-15mm and the hardness is HRC 70 degrees, which improves the overall service life of the plunger. OULI MACHINE Extractor sliding table: The sliding surface is made of S50# steel, and has been heat-treated to a hardness of HRC 55-58. It has a long wear-resistant life and is equipped with a bearing design to make the entry and exit molds slide stably. OULI MACHINE Hydraulic system: The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Japan Yuken, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair. OULI MACHINE Electrical system: The main PLC electrical components of this machine adopt Mitsubishi's internationally well-known brands. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work. Heat insulation board: The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa or more, and a heat insulation coefficient of 0.031
5.Manufacturing Technique
OULIMACHINE CE ISO Approved Rubber hydraulic press machine, 1000Ton big frame hot heating curing press machine
WHY CHOOSE OUR OULI MACHINE Of CE ISO Approved Rubber hydraulic press machine, 1000Ton big frame hot heating curing press machine
QINGDAO OULI MACHINE CO., LTD WORKSHOP SHPW OF CE ISO Approved Rubber hydraulic press machine, 1000Ton big frame hot heating curing press machine Company Profile 6. COMPANY INFORMATION---QINGDAO OULI MACHINE CO., LTD
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We are specialized in rubber machinery designing,manufacturing and maintenance work. OULI main products: 1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine. Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil. We warmly welcome customers visit our factory and technology discussion is highly appreciated. Certifications 7. Certifications
OULI MACHINE COMPANY INTRODUCTION: QINGDAO OULI MACHINE CO., LTD Established in 1997 year, Located in qingdao city north of China. With more than 25 years development, OULI MACHINE more professional enterprise in design, Research and manufacturing rubber and plastic machines. OULI MACHINE main products: rubber banbury kneader mixer, two roll mixing mill, rubber calender, batch off cooling, rubber vulcanizing press, rubber extruder, tyre recycling line, and reclaimed rubber machines. OULI MACHINE company exported more than 100 countries in past 25 years, with CE, ISO and SGS certificates approved, And rich experience on guide machines' installation and maintenance after service.
