CNC Pipe Cutting System with Plasma/Flame Cutting Machine

CNC Pipe Cutting System with Plasma/Flame Cutting Machine

US$30,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CNCPCM-24/A/32A/40A/48A/56A/60A
Certification
CE
Condition
New
Control
Automatic
Application
Chemical, Machinery & Hardware
Connected Shaft Number
3-Shaft
Style
Desktop
Type
CNC
Pipe Diameter Applicable
50mm-600/800/1200/1500mm
Cutting Pipe Wall Thickness
1-25mm (Plasma Cutting)or as Per Plasma Generator
Pipe Wall Thickness for Cutting
5-60mm(Flame Cutting)
Cutting Speed
Plasma Cutting Speed: 50_3800 mm/Min
Flame Cutting Speed
50-750mm/Min
Number of Axis Under Control
3-6 Axis
Angle of Bevel
Plasma Cutting:45 Degree(Adjustable)
Bevel Angle
Flame Cutting:60 Degree;(Adjustable)
Cutting Pipe Length
No More Than 12000mm
Max Load Pipe Weight
4000kgs
Type for Cutting Machine
CNC Cutting Machine
Automation
Automatic
Transport Package
Sea Worthy Packing
Specification
ISO9001, SGS, TUV, CE
Trademark
QSPT
Origin
Shanghai, China
HS Code
8456901000
Production Capacity
50 Sets/Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 300.00cm
Package Gross Weight
1000.000kg

Product Description


U Technical parameters:
Ø Pipe diameter applicable: Φ 50-Φ 600/800/1200/1500mm
Ø Cutting Pipe wall thickness: 1-25mm (plasma cutting) or as per plasma generator; 5-60mm(flame cutting)
Ø Cutting speed: Plasma cutting speed: 50- 3800 mm/min; Flame cutting speed: 50-750mm/min
Ø Number of axis under control: 3-6 Axis
² Work piece axis of rotation(X)
² Cutting the first work piece along the axis of axial movement(Y)
² Cutting torch along the axial swing axis work piece (Z)
² Cutting torch along the work piece swing radial axis (W)
² Cutting the first spindle axis vertical take-off and landing (U)
² Cutting nozzle strength out and draw back axis (V)
Ø Angle of bevel: Plasma cutting± 45° (adjustable); Flame cutting: ± 60° (adjustable)
Ø Cutting Pipe length: ≤ 12000mm
Ø Max load pipe weight: 4000KGS
Ø CNC system: Original import IPC
Ø Cotrol way: Full CNC control with touch screen & man-machine interface
Ø Integrated precision of the machine:
² ≤ Portrait Moving Error: ± 0.2mm/1000mm
² Turning Angle Error: ≤ 1° Per 180°
² Surface quality: Clean and no dregs
² Repeat positioning accuracy of generatrix: ≤ ± 0.3mm

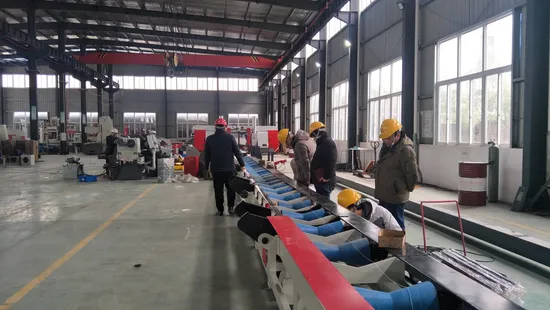

U Basic Configuration:
Ø NC pipe Profile cutting machine mainly are consists of the control system, machine arm system, driving unit, clamp unit, support unit, guide rail, airway system, control cabinet and operation table, etc. One set of flame cutting system (including plasma cutting) is provided as the main cutting system. (or as per customer's request )
plasma cutting flame cutting
Number of axis under control: 3-6 Axis 3-6 Axis
Pipe diameter applicable: Φ 50-Φ 600/800/1200/1500mm Φ 50-Φ 600/800/1200/1500mm
Cutting Pipe wall thickness: 1-25mm or
as per plasma generator
5-60mm
Cutting speed: 50_ 3800 mm/min 50-750mm/min
Angle of bevel: ± 45° (adjustable) ± 60° (adjustable)
Cutting Pipe length: ≤ 12000mm ≤ 12000mm
Max load pipe weight: 4000KGS 4000KGS
Portrait Moving Error: ± 0.2mm/1000mm ± 0.2mm/1000mm
Turning Angle Error: ≤ 1° Per 180° ≤ 1° Per 180°
Repeat positioning accuracy of generatrix: ≤ ± 0.3mm ≤ ± 0.3mm
