High Precision Vertical Milling Machine Price Xq5032
Basic Info.
Model NO.
XQ5032
Type
Worktable Milling Machine
Object
Tool
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Unviersal Vertical Milling Machine
Table Size
320X1270mm
Table Travel
720X300X400mm
X Axis Rapid Feed
30-830mm/Min
Y Axis Rapid Feed
30-830mm/Min
Z Axis Rapid Feed
23-625mm/Min
Spindle Taper
ISO40
Mill Head Swivel
30degree
Distance Spindle to Table
35-435mm
Distance Spindle to Colulmn
385mm
Spindle Speed
35-1500rpm
Spindle Motor
3kw
T Slot
3X14X80mm
Transport Package
Ply Wooden Case
Origin
China
HS Code
84595900
Production Capacity
80sets/Month
Product Description
high precision vertical milling machine price FEATUREvertical univesal milling machine feature:
Driven by servo motor Table automatic feed on X,Y,Z,and Automatic rapid feed X,Y,Z, Feed speed can meet different processing requirements. The base,flselage,slide,lift slide,headstock and other major parts are made of high strength materials,and after artificial aging treatment, ensure the stability of the machine tool use for a long time. Vertical milling head can be adjusted direct and reverse rotation in vertical plane±45. Lubricating device for vertical, horizontal, vertical screw and guide rail to forced lubrication, reduce machine wear, to ensure that the machine tool Spindle with ISO50, main motor with 3kw power ensuing the heavy-duty cutting stability Hardened and ground tablesurface, guideways with longer life. SPECIFICATION
vertical univesal milling machine specifications:
| Specification | Unit | XQ5032 XL5030 | XQ5032A XL5030A | XQ5032B XL5030B | XQ5032C XL5030C |
| Table size | mm | 1270X320 1270X300 | 1370X320 1370X300 | 1270*320 1270*300 | 1370*320 1370*300 |
| Table Travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 |
| Distance from spindle nose to work surface | mm | 35-435 | |||
| Spindle hole taper | --- | 7:24 ISO40 | |||
| Rapid speed of table (X/Y/Z) | mm/min | 1000/1000/750 | |||
| Table feed (X/Y/Z) | mm/min | Variable | |||
| T-slots(NO./Width/Pitch) | mm | 3/14/80 | |||
| Spindle speed range | r/min | 12steps 35-1500 | |||
| Stroke of spindle quill | mm | 70 | |||
| Distance between spindle axis and column guideway | mm | 285 | |||
| Swivel angle of Vertical milling head | --- | ±30° | |||
| Main motor power | kw | 3 | |||
| Torque of X/Y/Z axis AC servo motor | N.m | 10 | |||
| Overall size | mm | 1720X1680X1810 | 1820X1680X1810 | 1720X1680X1810 | 1820X1680X1810 |
| Net weight | kg | 1550 1500 | 1600 1550 | 1600 1550 | 1650 1600 |
vertical univesal milling machine standard accessories:
| Name | Specification Model | Qty |
| Draw bar | M16 X430 | 1 set |
| Inner hexagon spanner | 5 | 1 |
| Double-ended wrench | 17*19 | 1 |
| Double-ended wrench | 22*24 | 1 |
| Lifting crank | 1 | |
| Nut | M16 | 2 |
| Gasket | 16 | 2 |

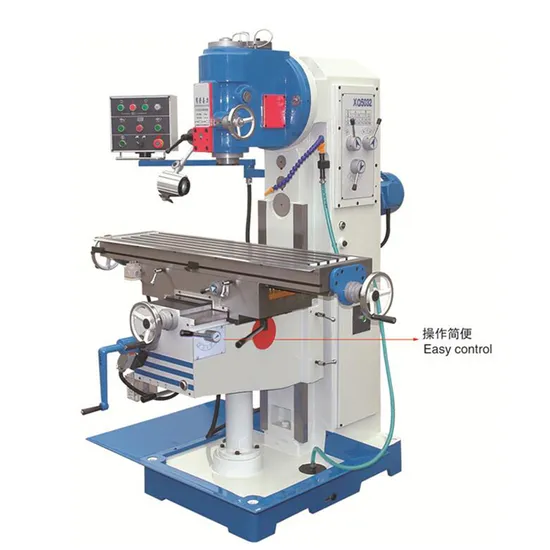

vertical univesal milling machine optional accessorie Rotary table Digital readout Milling Churk Collet Universal dividing head Clamping kits Detailed Photos
f you are interested in heavy duty universal milling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person: Kitty Xu
