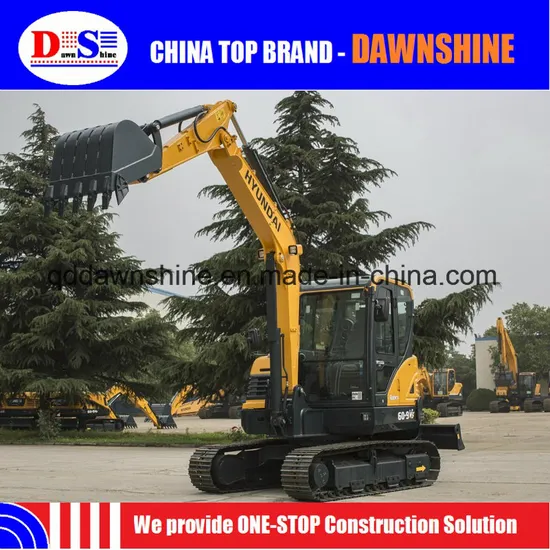

R60-9vs Mini 6 Ton Hyundai Excavator

R60-9vs Mini 6 Ton Hyundai Excavator

US$42,000.00-52,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
hyundai excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine
Yanmar 4tnv98-E
Rated Power
54.3(40.5) HP
Rated Speed
2400rpm
Budget Capacity
0.21m3
Length
5900mm
Wideth
1920mm
Higth
2550mm
Backend Radius of Gyration
1650mm
Maximum Digging Radius
4060mm
Maximum Digging Depth
4060mm
Transport Package
Nude Packing
Specification
5850.0 kg
Trademark
Hyundai
Origin
China
Production Capacity
20units/Month

Packaging & Delivery

Package Size
5900.00cm * 1920.00cm * 2550.00cm
Package Gross Weight
5850.000kg

Product Description

R60-9VS Mini 6 Ton Hyundai Excavator
. Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3/4/5.
. Except standard products, also customize products according to your requirements.
Details
Engine
Model Yanmmar 4TNV94L-ZXSHYB (XSNSRE)
Type 4-cylinders, 4 stroke, water-cooling
Direct injection type
Rated Power
SAE J1349 HP(kW)/rpm 48.5(36.2)/2200
Max. Torque N.m/rpm 201.1/1400
Bore x Travel mm 94 x 110
Displacement cc 3053
Battery 1x12Vx100AH
Start Motor 12V-3.0kW
Generator 12V-80Amp
Hydraulic System
Main Pump
Type Variable Piston Pump
Max. Flow l/min 138
LS load sensitive system
Hydraulic Motor
Travel Dual-speed axial piston motor with
brake valve and parking brake
Swing Axial piston motor with auto-brake
Safety Valve Setting kgf/cm3
Working device circuit 240
Travel 240
Swing system 230
Pilot valve circuit 35
Spare valve install
Hydraulic Cylinder
Cylinder No.s - cyl. dia. x shaft dia. x travel
Main Boom 1-Φ105xΦ60x715
Auxiliary Boom 1-Φ85xΦ55x850
Bucket 1-Φ80xΦ50x660
Blade 1-Φ105xΦ55x214
Driving and Brake
Drive Type Full Hydraulic
Driving Motor Axial Piston Motor
Speed Reducing system Planetary Reducer
Max. Trvavel Speed (High / Low) 4.6 km/h / 2.4km/h
Gradeability 35. (70%)
Parking Braker Oil immersed multi disc brake system
