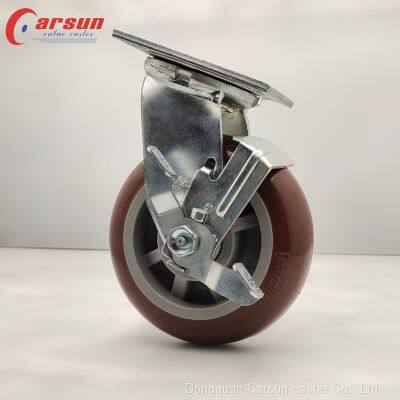

6 inch polyurethane swivel caster PU industrial caster with metal side brake

Product Details

Product Description

Product Description
4-6T01SB1-403G Industrial Caster wheel With metal side brake
1. Surface treatment: environmental protection galvanizing, neutral salt spray test for 24 hours without white rust; It can be electrophoretic and plastic sprayed.
2. Rotating parts; Larger base plate and steel ball plate, double steel ball track, steel ball plate and base plate are heat treated to better increase the bearing strength and rotation flexibility of casters;
3. The support base plate adopts double-sided welding and full welding structure;
4. Thickness of iron plate: 6mm; S-45c hot rolling forging process is adopted for the base plate and steel ball plate, and heat treatment is carried out to increase the strength;
5. Wheel material; The wheel adopts reinforced cast iron wheel core and internal stiffener; The outer skin is cast high-grade wear-resistant polyurethane elastomer;
6. Braking mode; Side metal brake;
7. Wheel color: the general color is red, and other colors can be customized according to customer requirements.
FEATURES AT A GLANCE
Support Description: the surface shall be galvanized. The thickness of top plate is 6mm. The top plate and rotary table are steel castings. Plane supporting structure is adopted, which is durable, replaceable and convenient for maintenance.Wheel Description: polyurethane rubber strip is injected into polyolefin wheel core with mechanical latch. It is commonly used in 4 series and 6 series of our products. It is used to protect the ground, with super wear resistance, high bearing capacity and high durability.
PRODUCT SPECIFICATIONS

Wheel Diameter	Tread Width	Capacity Per Caster	Wheel	Bearing	Modle number		Load Height	Swivel Radius
(mm)	(mm)	(kg)			Swivel	Rigid	(mm)	(mm)
100	51	270	Polyurethane	Delrin	4-4T01S-401C	4-4T01R-401C	143	90
				Roller	4-4T01S-401E	4-4T01R-401E
				Double ball	4-4T01S-401G	4-4T01R-401G
		350	Moldon Polyurethane (Iron Core)	Double ball	4-4T01S-431G	4-4T01R-431G
		350	Moldon Polyurethane (Aluminum Core)	Double ball	4-4T01S-471G	4-4T01R-471G
125	51	340	Polyurethane	Delrin	4-5T01S-401C	4-5T01R-401C	165	108
				Roller	4-5T01S-401E	4-5T01R-401E
				Double ball	4-5T01S-401G	4-5T01R-401G
		450	Moldon Polyurethane (Iron Core)	Double ball	4-5T01S-431G	4-5T01R-431G
		450	Moldon Polyurethane (Aluminum Core)	Double ball	4-5T01S-471G	4-5T01R-471G
150	51	410	Polyurethane	Delrin	4-6T01S-401C	4-6T01R-401C	190	127
				Roller	4-6T01S-401E	4-6T01R-401E
				Double ball	4-6T01S-401G	4-6T01R-401G
		500	Moldon Polyurethane (Iron Core)	Double ball	4-6T01S-431G	4-6T01R-431G
		500	Moldon Polyurethane (Aluminum Core)	Double ball	4-6T01S-471G	4-6T01R-471G
200	51	450	Polyurethane	Delrin	4-8T01S-401C	4-8T01R-401C	240	165
				Roller	4-8T01S-401E	4-8T01R-401E
				Double ball	4-8T01S-401G	4-8T01R-401G
		540	Moldon Polyurethane (Iron Core)	Double ball	4-8T01S-431G	4-8T01R-431G
		540	Moldon Polyurethane (Aluminum Core)	Double ball	4-8T01S-471G	4-8T01R-471G

Company Profile
Q1.Are you a factory or a trader? A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.
Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee
forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).
Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.
Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton
Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.
Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.
Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.
