40W 48W T8 Fluorescent Energy Saving Tube8 LED Lamp T5 T8 LED Batten Light Bar Tube for ETL UL Market

40W 48W T8 Fluorescent Energy Saving Tube8 LED Lamp T5 T8 LED Batten Light Bar Tube for ETL UL Market

US$3.50-7.50 10 Pieces (MOQ)

Basic Info.

Model NO.
DGA00-***WT-G8-T
Power
9W, 12W, 18W, 20W, 25W, 30W
Length
2FT(0.6m), 3FT(0.9m), 4FT(1.2m), 5FT(1.5m)
Shape
Straight
Shade Material
Clear/Milky PC
Lamp Holder/Base
G13
LED Type
SMD 2835
Shell Type
Clear/ Frosted PC
Lifespan
≥50000H
Warranty
5 Years
Certification
CE, RoHS, ETL, FCC, CETL, SAA, EMC, LVD
Input Voltage
100-240V AC, 100-277VAC
LED Chips
Epistar
Lumen Efficacy
100lm/W, 130lm/W, 160lm/W
CRI
Ra80, Ra90
Transport Package
EPE+Inner Box+Carton
Specification
2ft, 3ft, 4ft, 5ft, 8ft
Trademark
FOCUS LIGHTING
Origin
Shenzhen
HS Code
9405409000
Production Capacity
50000PCS/Month

Product Description

40W 48W T8 Fluorescent Energy Saving Tube8 LED lamp T5 T8 LED Batten Light Bar Tube for ETL UL market
Product Description

Drawing:
Features: > Pretty and elegant appearance, G13 fixed or rotating end cap is available.
> Colorful metal rings available, Blue, Green, Silver, Red and Gold.
> ODM service available, Laser print customer LOGO and customer exclusive lable.
> 6063 Aluminum shell, Japan PC cover, long lifespan.
> Professional design of optics, no shadow, no light spot.
> Mainly used in factory, supermarket, carpark, hospital and school.
Electrical: > Power: 2ft=6W/9W, 3ft=12W, 4ft=15W/18W/20W, 5ft=20W/25W/30W. > Input voltage: AC100-240V, AC100-277V. > Power Factor : >0.95, THD<15%. > Power efficiency: >90%.> Starting Time: <0.5S. > Switching Cycle before Failure: >100,000 times. Optical: > High bright 2835 SMD LEDs, 100lm/W, 130lm/W, 160lm/W, 170lm/W.

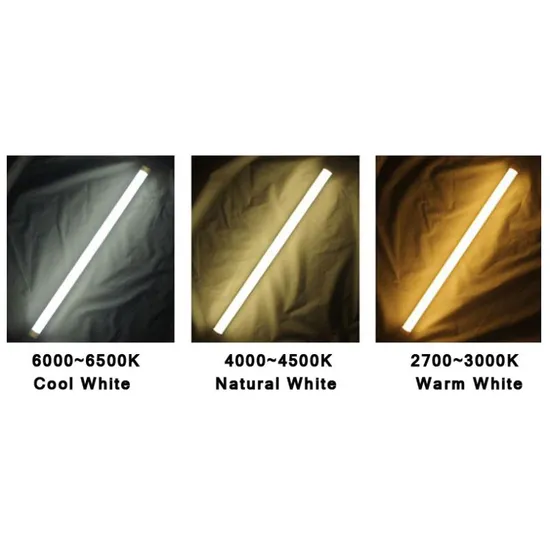

> CCT: WW:3000K, NW: 4000K, PW: 5000K, CW: 6000K.
> CRI: Ra80 or CRI90. > Bean angle 180°.
> Cover: Clear or Milky PC
> Rotatable end cap: Available
Datasheet:
item L=0.6M/2ft L=0.9M/3ft L=1.2M/4ft L=1.5M/5ft
Rated powed 9W 12W 18W 24W
LED Tpye/Qty 96pcs 96pcs 144pcs 180pcs
Lumen Efficacy 100/130/160Lm/W 100/130/160Lm/W 100/130/160Lm/W 100/130/160Lm/W
Luminous Flux 900~1440Lm 1200~1920Lm 1800~2880Lm 2400~3840Lm
Color Index Ra>80
Color
Temperature
Single color:WW:3000K NW:4000 PW:5000K CW:6000K
Beam Angle 120 Degree
Power Factor PF>0.95
Input Voltage AC200~240V/50Hz
Housing material Aluminum + PC cover
Starting time 0.5
Temperature Operation:-15°C~+50°C Storage:-25°C~+55°C
Lumen Maintenance
@6000hrs
80%
Switch cycle
befor failure
100,000
Life Span 50,000 hours
Warranty 5 Years

Dimension:
Type 2ft(0.6m) 3ft(0.9m) 4ft(1.2m) 5ft(1.5m) 8ft(2.4m) A B
602mm 906mm 1213mm 1513mm 2362mm
588mm 892mm 1198mm 1498mm 2348mm

Application: > Commercial Complexes and other Public facilities
> Schools, Colleges, Universities,supermarkets, offices,builder,metro
> Places where need energy saving and high color rendering index lighting
> High maintenance or temperature sensitive environments
Installation Instructions
Package:
Product Type Power Carton Size Qty./Carton Gross Weight
60cm/2ft 6W/9W L66*W22*H22 25pcs 6.7Kgs
90cm/3ft 12W L95*W22*H22 25pcs 10.6Kgs
120cm/4ft 12/18/20W L125*W22*H22 25pcs 12.9Kgs
150cm/5ft 20/25/30W L156*W22*H22 25pcs 14.9Kgs

Company Profile Shenzhen Focus Lighting Co., Ltd. is specializing in LED lighting. We have a R&D team with experienced and professional, and perfect testing instruments and equipment to make products form R&D, production, testing, to the final delivery, formed a complete set of produce quality control system.
We mainly produce LED track light,LED downlight,LED PAR light commercial and industrial lighting Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers.Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
FAQ Q: What's your MOQ? Can I order one piece to test?
A: Yes, MOQ=1pcs. Sample test available.
Q: What about the lead time?
A: <50pcs, we can ship in 5-7 workdays after payment made. 50-500pcs, we can ship in 10-12 working days after payment made.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Ship air to door takes around 15 days.
Q: What happens if my product failures?
A: The product failure rate is around 0.3%. If the products are damaged during transportation or test broke, we will replace new lights to you.
Q: Are you a trader or factory?
A: Yes, we produce LED lighting since 2010 and mainly sold in China. From 2012, we began to produce and export LED lighting.
Q: Can I visit your factory? Where is your factory located?
A: Yes. We are located in Shenzhen city, welcome to visit our factory.
