Ring Die Pelletizer for Wood Chips to Pellet Conversion Wood Pellet Machine for Efficient Wood Chip Processing

Product Description

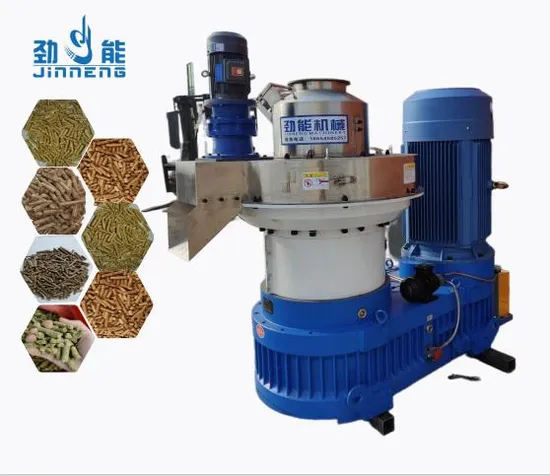

Wood Pellet Machine - JN560 The JN560 Vertical Ring Die Wood Pellet Machine is a high-efficiency equipment designed for biomass pellet making. Unlike other horizontal ring die machines, this machine features a vertical structure, making it easy to feed biomass materials, ensuring a big capacity, high pressure, and stable operation.
This wood pellet making machine is ideal for pressing low adhesive and hard molding materials, including rice husk, hard wood sawdust, sunflower seeds husk, peanut shell, wood bark, and other wood waste. It is also capable of pressing various types of straw and agricultural waste. Widely used in the biomass pellet making industry and other pellet forming industries, it offers exceptional performance and reliable results.
Specifications:
Model: JN560 Power: 132kw Capacity: 1.5-2t/h Manufacturer: Jinan Jinneng Machinery Co., LTD
MAINLY FEATURES:
1. Stainless steel double layer ring die, lifetime long, running cost low;
2. Roller shell with latest anti-wear alloy welding technology, incrase 1/3 lifetime;
3. Automatically roller lubrication system, machine can 24 hours no stop long time continaully working;
4. Strong industry gearbox inside with big modulus hard serface spiral gear strong and high efficiency, liftime gurantee period is THREE years;
5. With stainless steel pelletizing chamber cover, 304 type stainless steel, stronger and long lifetime;
6. Machine main shaft and machine main shaft bearing chamberpassed quenching and tempering treatment, best quality;
7. Gearbox oil cycline lubricating machine mainshaft bearing, high efficiency and less consumption grease.
MAINLY PARAMETERS FOR WOOD PELLET MACHINE:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
XGJ560	90+2.2+0.75+0.25+3	1000-1200	4200	2300x1250x1950
XGJ560W	110+2.2+0.75+0.25+3	1200-1500	4500	2300*1250*1950
XGJ560P	132+2.2+0.75+0.25+3	1500-2000	5000	2300x1250x2100
XGJ700	160+2.2+0.75+0.25+3	2000-3000	6200	2800x1400x2100
XGJ850	220+2.2+0.75+0.25+3	2500-3500	10400	3200x1630x2300

ONE feed port

From here pour in the granulated ingredients to be made
TWO Pellet machine outlet
Baffles are arranged on both sides to prevent particles from spreading to both sides
THREE pure copper motor

All copper wire winding high horsepower high efficiency accessories complete test machine delivery
FOUR integrated design

Integrated design of motor reducer reduces transmission power consumption and improves efficiency
