Busbar Chamfering/ Deburring Processing Machine
| US$1.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EMAC-XT
Motor Power
7.5 Kw
Knife Parameter(Diameter)
100 mm
Max Allowable Sheet
140*15mm
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Size: 2500x2000
Trademark
BEIENE
Origin
Qingdao, China
Production Capacity
200 Sets Per Month
Packaging & Delivery
Package Size
285.00cm * 215.00cm * 228.00cm
Package Gross Weight
2400.000kg
Product Description
Video LinkExplore More: https://cncmachinegroup.en.made-in-china.com
Product Parameters
| Capacity | Thickness | mm | 3-15mm |
| Width | mm | 30-230 | |
| Min Length | mm | 200 | |
| Stroke | X Axis | mm | 260 |
| Y Axis | mm | 890 | |
| Z Axis | mm | 190 | |
| Servo Spindle | Tool Holder Model | / | BT40 |
| Total Power | kw | 11 | |
| Servo Motor Power of Spindle | Kw | 5.5 | |
| Speed of Spindle | rpm | 0-6000 | |
| Tool Changing | / | Pneumatic | |
| Accuracy | Position | mm | ±0.05 |
| Position Repeat | mm | ±0.05 | |
| Library | Knife | pc | 6 |
| Stroke | mm | 250 | |
| Machine Weight | Kg | 2400 |
Our Advantages

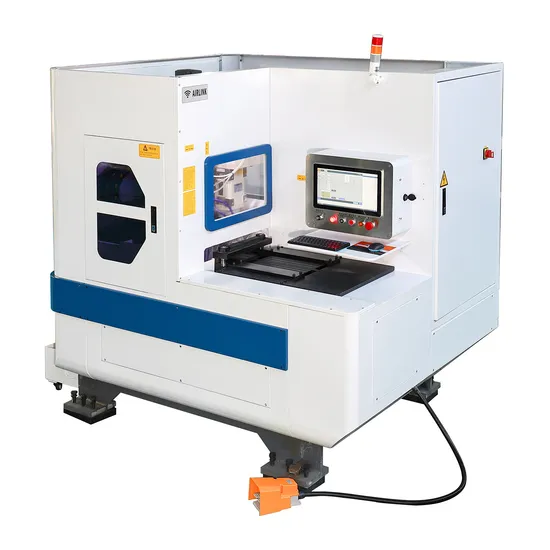

BEIENE is focusing on Intelligent and 3D busbar Processing line with our own 3D busbar program software Smartnest . This is our Intelligent 3D busbar Chamfer machine EMAC-XT with our unique AIRLINK technology ! It has 6 knives tool magazine for automatic tool exchanging . and various chamfering templates ! By our AIRLINK , all the chamfering template can be set up to the 3D or 2D drawings imported by our software Smartnest in office remotely and process them on the machine directly !
Workpiece Samples
