SHXJ1800 Mono wire saw stone cutting machine with ce certificate

Product Description

Function:The machine is mainly used for processing the profile of marble and granite. Such as:processing the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter, etc.
Brief introduction of SHXJ1800 wire saw machine with rotating table:
1,The movements of the machine are controlled by a four axes CNC. Up -down is Y axis.trolley movement is X axis.left guide wheel rotation is A xis. right guide wheel rotation is B axis.the table of trolley rotation is C Axis. The data can be input directly in the CNC When you cut standard slabs or by operator program with G code. If there are any complex graphics, it can draw graphics with AutoCAD in DXF format and put it on USB interface. When it is put on the USB interface,the cnc system can read the DXF format and automatically generate the program.
2,The machine is provided with steady structure, including top beam,two upright column,square box,hydraulic tensioning unit,two big flywheel. Left side install a driven big flywheel and hydraulic tensioning device. hydraulic tensioning device controls diamond wire tension or loosen, at the same time keep the diamond wire pressure. Right side install a driving flywheel and main motor, the driving flywheel is driven by main motor with belt.it can control the speed of wire between 0-40m/s via inverter.the machine can cut different kind of stone material.
3,In order to reducing the diamond wire wear and keeping the diamond wire steady , the machine are equiped with four guide wheels (Diameter: 200mm). guide wheels are protected by rubber liners which can be easily changed once they are worn out.guide wheel rotate according to cutting shape,controled by step motor.
4,According to the size of the stone,we equip with an electric system for bringing closer the guide wheels that is to adjust the cutting width as stone size, reducing the arch value when cutting with diamond wire .
5,The table of trolley is 2000 x 3000 mm and has a maximum capacity of 50 Ton. The rotation is manual 360º ,controled by common motor.
6. Worktable is running by lead screw and move on railways. The lead screw and rails are soaked with oil in a closed cover againt dust and water(Patent product).that would extend the life time of screw
7. There has automatic alarm if wire broken.
8.We equip a cooling system for diamond wire.it can detect water pressure.the machine will automatically stop in case of no water or insufficient water flow, to protect the diamond wire.
9,the up and down screws are covered with a short platic pipe to hold the grease and be oiled. protected with dust cover against dust and water.
Technical parameters:

Parameters	SHXJ1800(with rotating table)
Diameter of Wire	Φ8-Φ11
Length of Wire	19300mm
Speed of Wire	0-40m/s
Rotating Table Size	3000×2000mm
Worktable Whether Revolve	360°(the table rotate when press and hold the button ;it will stop once loosen the button )
Worktable Load Capacity	50T
Range of Cutter Movement	1900mm
Max Cutting Size(L×W×H)	3600×2000×1800mm
Production Efficiency	1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	8800×6700×5300mm
Diameter of Guide Wheel	Φ200mm
Total Power	20.88KW
Total Weight	13T

Electric Cabinet& Operation Panel Photos :

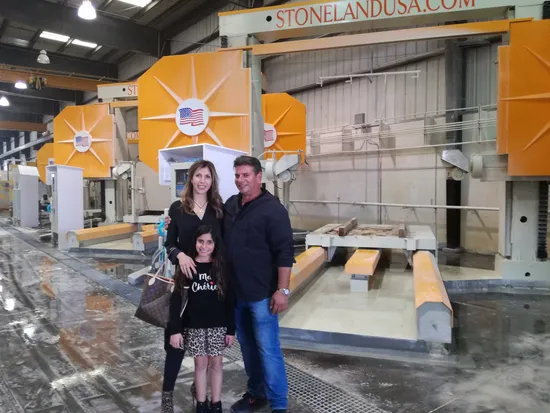

Exhibition:
FAQS:
1) Payment:
30% (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The wire saw machine can be shipped within 15 working days when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the wearing parts are not covered by the warranty. wearing parts are as follows: bearings,oil seals,rubber of guide wheel,rubber of big flywheel,guide wheel etc.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. After-sales service 24 hour on line.
