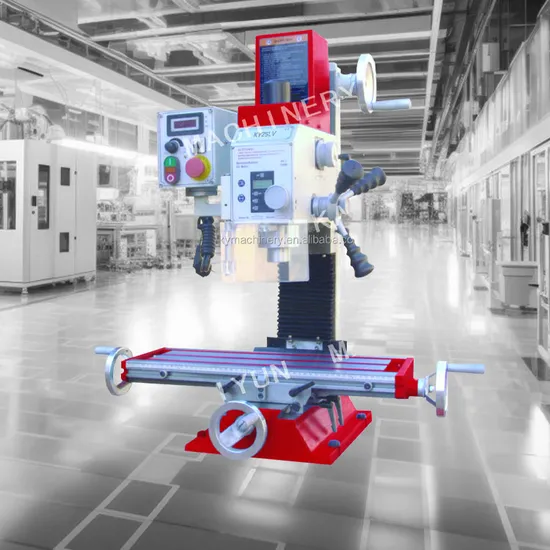

Pillar Type Universal Metalworking Milling Drilling Machine (KY20V/KY20LV)
| US$650.00-750.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY20V/KY20LV
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Drilling Capacity
25mm
Motor
600W
Load of Table
55kg
T-Slot
12mm
Sleeve Travel
50mm
Spindle Taper
Mt2
End Milling Capacity
20mm
Face Milling Capacity
63mm
Color
Red
Transport Package
Wooden Case
Specification
KY20V/KY20LV
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
Features1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
| Specification | ||
Model No | KY20V | KY20LV |
Drilling capacity | 20mm | 20mm |
Face milling capacity | 63mm | 63mm |
End milling capacity | 20mm | 20mm |
Spindle taper | MT2 | MT2 |
Sleeve travel | 50mm | 50mm |
Low speed stage | 50-1125rpm | 50-1125rpm |
High speed stage | 100-2250rpm | 100-2250rpm |
Head rotation | ±90° | ±90° |
Table size | 500x180mm | 700x180mm |
X-axis travel | 280mm | 480mm |
Y-axis travel | 175mm | 175mm |
Z-axis travel | 380mm | 380mm |
T-slot | 12mm | 12mm |
Load of table | 55kg | 55kg |
Motor | 600W | 600W |
Packing size | 670x550x860mm | 870x550x860mm |
Net weight | 103kg | 115kg |
| Standard Accessories | ||
Speed display | 1 set | |
Depth ruler | 1 set | |
Drill chuck 3-16mm | 1 set | |
Arbor MT2/B16, M10 | 1 set | |
Drawbar MT2/M10 | 1 set | |
| Optional Accessories | ||
Stand & chip tray | ||
Working lamp | ||
Keyless drill chuck 3-16mm | ||
ER25/6pcs collet chuck (4-16mm) | ||
2-way angle vise-50mm | ||
End mill 7pcs (4-16mm) | ||
58pcs of clamping kits/M10*11.7mm | ||
X-axis Power feed | ||
