H-Type Artificial Net Broiler Cage, Poultry Breeding, Animal Husbandry Equipment

Product Description

About Us
For the last couple of years focus only on one thing : How to make your poultry farming result better.
We design, produce and install automatic poultry cage equipment with automatic drinking line, automatic feeding machine, automatic manure belt removing, automatic egg collecting and inner house climate control.
We offer you practical, economical and environmental-friendly solution all geared to future needs.
We have the installation experiences with 300 million poultry farm equipped with 12 tiers of layer cage system.
Our good quality comes from our advanced production equipment, and on the other hand from our mature design and lots of installation experience. Now, our installation quantity is about 1000 houses per year.
Come talk to us to start your modern poultry farm.

9LDC-3240 type

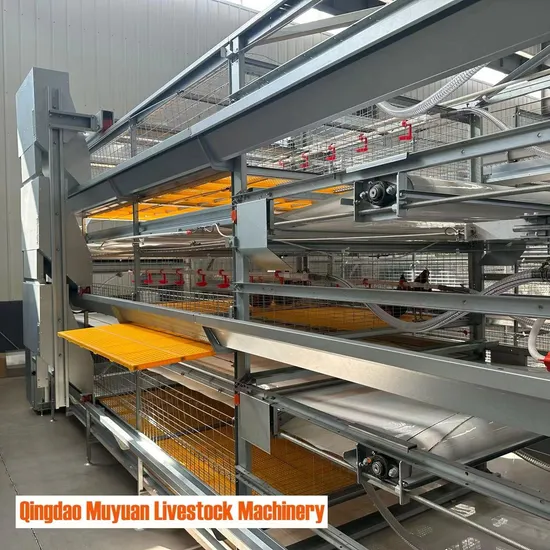

The automatic H-poultry farm can automatically feed, drink, clean manure and cool down with cooling pads.
Centralized management and automatic control can save energy consumption, improve labor productivity, reduce the cost of manual feeding, and greatly improve the breeding efficiency of farmers.
The H-shaped chicken cage makes full use of the space advantage, which can increase the number of chickens and improve the economic benefits of the farm in the later stage.
In addition, the automatic manure cleaning system can prevent chickens from coming into contact with feces, thereby reducing the damage of bacteria to chickens, reducing the incidence of diseases, and improving the survival rate of chickens.

Easier management

Automatic Birds Harvesting System:
automatic transport ofbroilers out of the house.

Pull-type Soft PP Floors:
quick and efficient moving-out of the broilers. prevents breast blisters and promotes clean and healthy feet.
Plug-in connecting structure make trough solid \smooth and precision,mainwhile the cage frame is more reliable.
Door net

The material strength of the cage frame Aluminized
Magnesium Zinc plate can reach over 450MPa,and
the galvanized coating content can reach 275g.

Feeding trough:

Feeding trough: The feed trough is made of PVC or Aluminized Magnesium Zinc plate material, with reliable quality
and small seams with high straightness.
Automatic Bird Harvesting System automatic transport birds

Belt Type Manure Cleaning System:
automatic manure removal to reduce ammonia emissions in the house to a minimum,Optimal cleaning effect of chicken manure.


parameter
4 tiers H frame broiler cage size

products name	4 tier H type chicken broiler cage	Model	9LRC-3240
Material	galvanized wire	Tiers	4 Tiers
one unit size	2500mm×1600mm×2600mm (L×W×H)	unit capacity	80 birds
one cell size	1250mm×800mm×450mm (L×W×H)	cell capacity	20 birds per cell
life span	15~20 years	living space/bird	500cm²

Fan

Fan blade is made of stainless steel by punch forming, no dust, attractive and durable. Special blades shape design ensure large air volume,no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.

Centrifugal type open mechanism can guarantee that the shutters completely open and close.
Make the shutters opened to reduce resistance,increase the air flow;
Closed tight,can effectively prevent the outdoor wind, light and dust from entering the house;
The first use of high-quality nylon PA66 material,to ensure that the open The service life of the mechanism;
Centrifugal type open parts are connected, use copper rivets link,wear resistance,norust,goodflexibility,reduces friction coefficient;
Guide rod made of 304 stainless steel, plus special material, ensure the intensity,not rusty,greatly improving the service life.
Manure belt


The color is bright white.
Adopt the raw material PP, produce various kinds of the PP belt, as the user's requirement of thickness and width,
The PP belt uniform in thickness and the width, there is a little error. The edge of belt is neat.
Anti- Corrosion , resistance to cut, strong tensile strength.
The common manure belt is with thickness of 1.0mm to 1.2mm . the width can be produced as user's needs.
PP manure belt production equipment shutdown and maintenance status


Automatic Nipple Drinking Line System can provide fresh and clean water for birds which is crucialfor the growth of birds.
Meanwhile, nipple drinking system can make the poultry house environment better, it can reduce the feed to be wasted as well as the intensity of labor.
So the nipple drinking system has become a necessary equipment for standard poultry house.
The feeding system:


Silo
Feed storage tower, feed tower, is a kind of suitable for large-scale large and medium-sized farms of a storage equipment, mainly used to store dry powder or granular compound feed, in its outlet with feeding equipment, can be regularly transported to the house feed.It can protect feed from moisture and pollution, reduce livestock and poultry disease disasters, improve economic benefits.
The production of the tower adopts the combination of large automatic mechanized equipment and large molds, so that the production of each component has reached the standardization, the size is more accurate, and the installation is more convenient.

The galvanized material tower is composed of the main body of the silo, the clamshell (the top of the silo), the ladder, the column, etc., the material tower is a cylinder above, the following is a cone, the lower end of the galvanized material tower is provided with a plexiglass observation window, convenient observation of the feeding situation, the pull rod on the ground can be free to open and close the tower operation.


Ladders design protection device,Anti-skid design, both safe and reliable, and easy to observe, installation and maintenance.

The production of the galvanizing tower adopts advanced laser equipment and precision mold, which makes the production of each component of the galvanizing tower more standard, more precise in size and more convenient in installation
Multi-angle observation mouth, convenient to know the inventory in time, accurate filling material.

The shape of the funnel at the base of the tower is designed to provide conditions for the transport of feed.
The lower cone is provided with an organic transparent observation window, which is convenient for real-time observation of material conveying.
21st anniversary
FAQ
1. Q: I need a complete set poultry equipment, and also need a best price, what should I do?
pls let us know:
(1). Chicken House Size (length x width x height).
(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
(4). Maximum and Minimum Temperature of Farm Location.
(5). House Type: close type of two side bricks building wall with 36" fans and air inlets, or open type of using curtain in two sides.
2. Q: Can the products be customized?
A: We can produce the products according to your detailed requirements.
3. Q: What's the MOQ of the products?
A: we always suggest you the economic quantities for you to save your budgets.
4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.
5.Q: Do you have other poultry equipment?
A: We have feed silo, warm furnace, temperature controller, medicine adding machine, incubator, feed mill, egg tray and so on.
