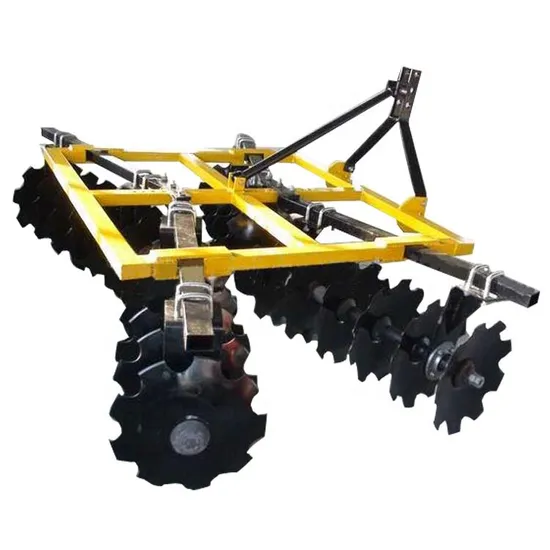

China Made Tractor Mounted Opposed Light Duty Disc Harrow

Product Description

China Made3 Tractor Mounted Opposed Light Duty Disc Harrow :
Product Introduction:
This opposed light duty disc harrow is specially designed and made for Romania, Bulgaria, Serbia and other southern European countries, it is developed and produced in combination with foreign technology. Different from the original three-mounted light duty disc harrow, this disc harrow can eliminate tractor bias traction.
The series opposed light duty is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil,and also can crush colds after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. This disc harrow is with strong soil crushing ability, widely used on the field after tillage. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
The disc blades used on disc harrow are with high tensile, heat treated notched discs, the structure is with easy gang adjustment with locking device, each gang with light duty grease bath bearings.

Product Features: It is mounted light disc harrow, disc blades size 460 x 3mm, spool spacer length 200mm, square axle 28 x 28mm. This tractor offset disk harrow is suitable for 12-100 hp tractor. The material of notched harrow disc is 65Mn spring steel,it is more stronger, HRC 38-48. Strong and durable bearing. Fit the scraper for each disc blade to clean the objects. The working depth can be adjusted freely.
Details: We have two types of frame as followings:
Type 1:
Type 2:
China Made3 Tractor Mounted Opposed Light Duty Disc Harrow Production Parameter:

Model	1BQDX-1.25	1BQDX-1.6	1BQDX-2.0	1BQDX-2.3	1BQDX-2.65	1BQDX-3.0
Working Width (mm)	1250	1600	2000	2300	2650	3000
Working depth (mm)	50-150
No. Of disc (pcs)	16	20	24	28	32	36
Dia x thickness of disc (mm)	460mm x 3mm
Weight (kg)	330	390	460	560	600	650
Linkage	Three point mounted linkage
Matched power (hp)	35-40	40-45	50-60	60-75	75-85	85-100
