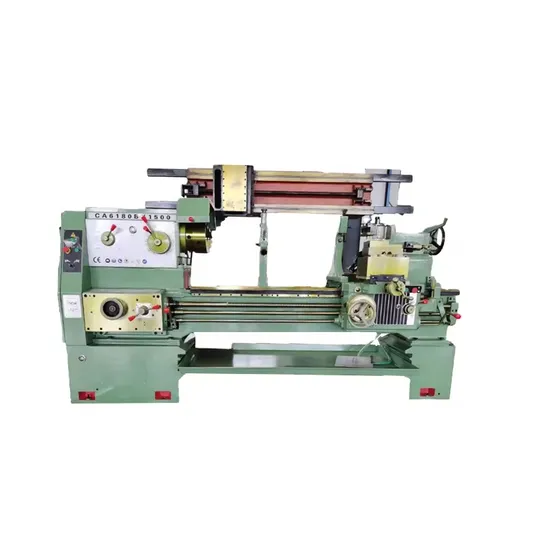

Ca6180 Metal Processing Manual Lathe Machine High Quality Heavy Machine Horizontal Medium Duty Lathe Machine for Metal

Product Description

Features:
This series lathe machine is sultable for intemal and external turning, tapering, and other rotating faces, metric.module and inch threads, as well as drilling and pull oil slot. Width of bed is bigger than normal lathe machine, with high hardness on guideway,. the guideway is through high-frequency quenching,wear-resisting. This machine is easy to operate, with rapld device for carriage, design with single hand wheel to operate.
The strenath and rigidity of machine is higher than normal lathe machine, high eficiency, suitable for heavy duty machining.
Parameters:

Specifications	Units	CA6180/CA6180B/CA6180C	CA6280/CA6280B/CA6280C
Max.Swing over bed	mm	800
Max.Swing over carriage	mm	540
Max.Swing in gap	mm		1020
Effective gap length	mm		210
Max.length of work piece	mm	750/1000/1500/2000/2200/3000/4000
Width of bed	mm	400
Section of turning tool	mm	25x25
Spindle speed		16-1400rpm(24steps)
Hole through spindle	mm	52,[80(B)],[105(C)]
Spindle nose		SO(GB)C6/D8(B,C)
Spindle taper		MT6[φ901:20(B)1[Φ 1131:20(C)]
No.off feed		64 kindsX(for each)
Range of metric threads	mm	(1-192)(44 kinds)
Range of inch threads		(1-24tpi)(21kinds)
Range of module threads		0.25-48(module 39 kinds)
Range of diametral pitc threads		1-96DP(37 kinds)
Max.tailstock spindle travel	mm	150
Tailstock spindle diameter	Φ/mm	75
Taper of tailstock spindle center hole		MT5
Main motor	KW	7.5(10HP)
Overall dimensions for 750mm	mm	2440x1140x1750
Overall dimensions for 1000mm	mm	2650x1140×1750
Overall dimensions for 1500mm	mm	3150x1140×1750
Overall dimensions for 2000mm	mm	3650x1140x1750
Length		G,W	NW
Overall dimensions for 750mm	kg	2520	2400
Overall dimensions for 1000mm	kg	2720	2560
Overall dimensions for 1500mm	kg	2980	2800
Overall dimensions for 2000mm	kg	3260	3087

Details:
QUENCHING BED 400MM WIDTH
Width is bigger than normal lathe,with high hardnbess wear-resisting
RAPID TRAVERSE DEVICE
Rapid device for carriage single hand to operate
CHUCK AND TOOL POST COVER
Export configuration Protect the operator
FOOT BRAKE
Export configratior need extra cost
2 AXIS DRO

2 axis digital readout, need extra cost.
STEADY REST, FOLLOW REST

Length above 1500 mm steady rest and follow rest are standard.
