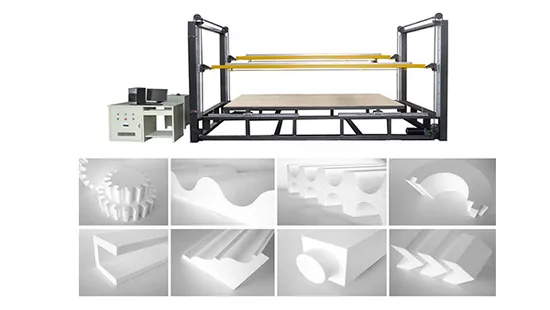

Fully Automatic CNC EPS Foam Hot Wire Styrofoam Cutting Machine

Product Description

Product Description

Item	Unit	ESCNC200SL	ESCNC300SL	ESCNC400SL
Max cutting block size	mm	2000×1500×(1250-1500)	3000×1500×(1250-1500)	4000×1500×(1250-1500)
Cutting wire	mm	ф0.4G20Ni80	ф0.4G20Ni80	ф0.4G20Ni80
Stepping motor torque	N.m	18	18	18
Power	kw	5	5	3
Cutting speed	M/min	0-4	0-4	0-4
Capacity	KVA	3	3	3
Transformer voltage	V	0-70(adjustable)	0-70(adjustable)	0-70(adjustable)
Overall dimension	mm	3500×2500×2600	4500×2500×2600	5500×2500×2600
Weight	kg	500	650	750

Product advantages
Functions & Features:
A.The Aluminum Frame Is Highly Stable And Accurate.
B.The Cutting Line Adopts Stepping Motor Which Is Very Stable And Could Be Timing Freely, This Matches The Requirement For Cutting Special Shapes With Frequeniy Changeable Timing, The Accuracy Is 0.5mm.
C.Voltage Regulation: The Cutting Line Is Equipped With A 3kw Transformer, Electrically Adjustable Output Voltage Is 0-70v, 20 Heating Wires Could Be Equipped, So 20 Same Images Or Characters Could Be Cut Simultaneously.
D.The Cutting Line Is Equipped With Famed Brand Pc Installed With English Version Drawing And Cutting Software Which Is Very Easily Operated, Customers Only Need To Draw Images With The Drawing Software And Transfer Them Into Cutting Codes By Cutting Software, The Cutting Line Wil Automatically Finish All The Other Jobs.
E.The Touch Screen Shows The Images Being Cut And Can Trace The Cutting Process. Cutting Speed Is Adjustable, Maximum Speed Could Be 1000mm/Min. Parameter Setting Is Quite Simple.
F. The Cutting Line Has Stroke Protection Function, When The Running Stroke Exceeds Regulated Stroke, The Cutting Line Shall Stop Running Automatically,Besides, The Cutting Line Also Has Functions Like Power-Off Memory, Reverse Cut And Rotation, Mirror Symmetry And Backlash Compensation,Etc.
High Precision Wire setting system (Patent Product, finish wire setting in 2 minutes. In China, only we have HIGH PRESION WIRE SETTING SYSTEM, in other company, they have auto wire setting system, but after wire setting, they should manually check thickness again.)
Attention
1.EPS block should be dried before cutting to increase efficiency and avoid damage of hot wires;
2.Check cutting machine before operation to ensure reliability of ground connection, correct running direction of main cutter, air blower and limit switch;
3.Strictly prevent foam beads and cutting fragments entering into the electric system to avoid conflagration because this equipment is a strong electric current working system;
4.Maintenance and attention points of variable-speed gear box.
5.Replace lubricating oil in gear box every half a year.
6.Keep enough lubrication oil in oil tank and check it regularly;
7.Pay attention to running condition of whole equipment during its working, Stop to check when there is any unusual situation. 8.Notice: Do not whack the gear box.
9.Fire Extinguisher must be prepared at working site and operator should monitor the machine during operation;
10.Operators is allowed to operate after training.
Certifications


Company Profile
FAQ
1. Q: Where is your company located? How can I visit there?A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.2. Q. Do you have some videos where we can see the line producing? A: Yes, we can provide some videos for reference.3. Q: What's the MOQ?A: Our MOQ is 1 Set.4. Q: Can I have my own customized product?A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.5. Q: Can you produce according to the samples?A: Yes, we can produce mold by your samples or technical drawings.6. Q: What's the delivery time?A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order.7. Q: What is the payment terms?A: T/T, L/C, D/P at sight8. Q: How does your factory carry out quality control?A: We attach great importance to quality control.Every part of our products has its own QC.9. Q: What certificate do you have?A: We have TUV, CCC, CE (EN71, EN14765), SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.
