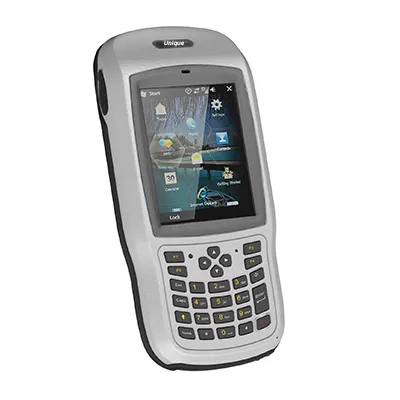

Gis Data Collector U18n Handheld GPS

Product Description

Specification

Model U18N
Over View
Processor	1GHz
ROM	1GB
RAM	512MB
Operation system	Windows Embedded Handheld
Keypad	27 numeric + programmable keys
Display resolution	3.7"sunlight readable with integrated touch screen 480*640
Camera	5 mega pixel
Dimension	200mm x 96mm x 32mm
Weight	515g with battery
Communications and data storage
Bluetooth 2.1 class II	V2.1
Long range Bluetooth	Optional(along with standard bluetooth)
GSM/3G(WCDMA)	3G(WCDMA)
WIFI	Yes
USB port	Type B USB
Serial port	DB9
Storge extension	TF card, up to 32GB
Power
DC input	DC 5V, 1A
Detachable Li-ion battery	6500mA, 3.7V
Environment specifications
Operationg temperature	-20ºC ~ +60ºC
Storage temperature	-30ºC ~ +70ºC
Sand, dust & water	IP65
Drop	1.2m protection
Accessory
Standard accessory	DC adapter, USB cable, Serial cable, Battery, Strap with Stylus, Screen protection film and User guid(Electronic Edition)
Optional accessory	Mounting bracket and Pole(Claw) Clamp,External GNSS antenna, External antenna cable
Supported Software
Supported Software	SurvCE, FieldGenius, Superpad

Product Description The Thunder industrial handheld, integrated a dedicated GNSS receiving board, a combination of connectivity options and standard features, including DB9 series port, LRBT, NFC, Wi-Fi and 3G, provides entire solutions for high-accuracy GIS applications.The fully-rugged IP rate is designed for field use. The Thunder industrial handheld come ready for you with application possibilities in power companies, agriculture and geological industries, forestry, field service and GIS/surveying.
