8 Ports Poe Switch 10/100Mbps 2 Gigabit Uplink

Product Description

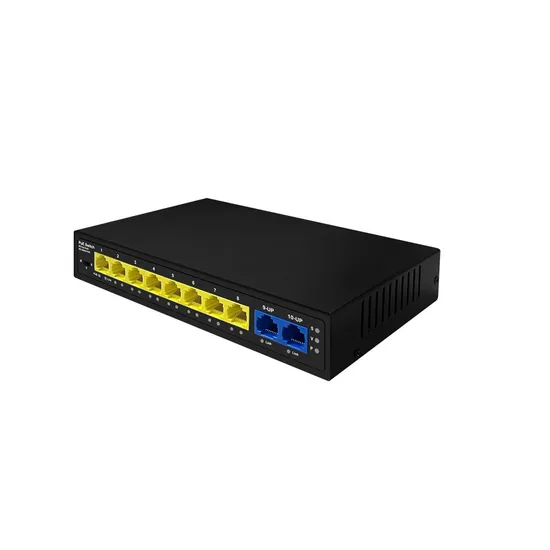

8 Port 10/100Mbps POE Ethernet switch with 2GE uplink ports
Product Description:
The S1108EP-2GV2 is a gigabit uplink 10/100Mbps unmanaged POE switch, which provides eight DATA+POE ports and two pure gigabit data port. Port 1-8 follows the 802.3af/at standard and supports maximum power output of 30w. The POE ports of the switch can automatically detect and supply power to the PD devices that complies with the 802.3af/at standard. Otherwise, there is no power supply output. In addition, the switch supports auto-negotiating traffic control functions and is compatible with terminal devices of 10Mbps, 100Mbps.
The S1108EP-2GV2 is usually used to provide power and data transmission for IP cameras, wireless APs, bridges, and IP phones. For terminal devices that do not support POE, the POE splitter can be used to provide power supply and data transmission.
The S1108EP-2GV2 adopts plug-and-play design, which eliminates the need for software settings, which greatly facilitates the installation and use of digital monitoring and wireless coverage. In particular, the switch provides a set of DIP switches for easy switching between shared or port isolation modes. In the port isolation mode, 1-8 ports cannot communicate with each other, only through port 9-10 to output data. This mode can effectively suppress the generation of broadcast storms.
Product Features: Comply with IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3ab, 802.3q, 802.3af/at specifications. 2*10/100/1000Mbps uplink ports, support for auto-negotiation. Port 1 -8 maximum 30w power output. internal max 96w power supply. Adopt Store-and-Forward transmission mode. Auto MDI-X function, self-adjusting straight-through line, cross-line connection. 4K Mac address table One DIP switch supports port isolation setting and max 250m POE transmission(CCTV mode) Port status LEDs
Datasheet

Model		S1108EP-2GV2
Port	1000M Uplink	2
	100M POE	8
Function	Exchange Mechanism	Store-and-forward
	Exchange Capacity	16G
	MAC	4K
Environmental		Working Temperature:-10-55ºC Storage Temperature: -40-+85ºC
		Working Humidity :10%-90% RH non-condensing Storage Humidity:5%-90% RH non-condensing
POE		IEEE802.3af/at, MAX 30W, MAX power budget 96W
power		AC input 100~240V 50~60Hz
Network protocol		IEEE 802.3X IEEE 802.3i 10BASE-TX IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TX IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control
DIP switch		Ports isolation and CCTV mode max 250m transmission switch
Feature		Support VLAN, transmission 250 meter
Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gbit Ethernet 1000Mbps half-duplex, 2000Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100) 1000Base-TX: Pair 2 Category 5e and above UTP/STP(≤100m)
Physical Specifications		products size:190mm*130mm*32mm package size:300mm*175mm*100mm 1.1kg
