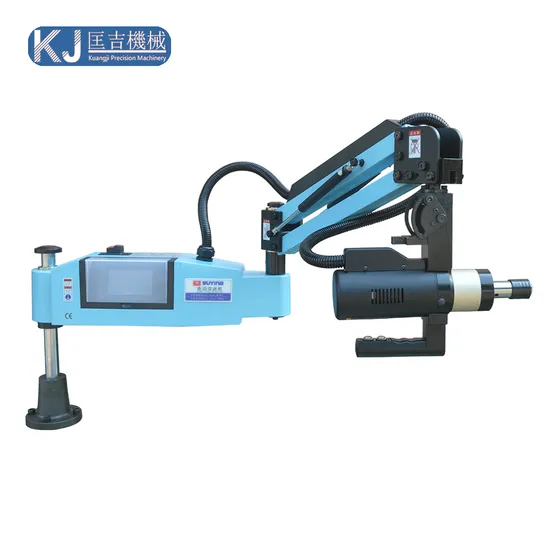

Upgraded M6-M36 Universal Touch Screen Drilling Threading Tapper Electric Flexible Arm Tapping Machine
| US$725.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Upgraded M6-M36 Universal
Controlling Mode
CNC
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Voltage/Power
220V/1200W
Working Radius
1250mm
Transport Package
Wooden Case
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
Machine Features The Electric servo cantilever drilling and taping machine is suitable for drilling and tapping various machines, moulds and auto parts.The whole machine adopts the suspended manipulator mode, which realizes the integrated interchange of tapping, which is flexible and convenient.
The operation interface adopts Touch Screen operations to make tapping easier and more convenient, which can be operated by any general worker.
This machine adopts cantilever tapping, which is fast and convenient replacing the existing tapping products in the market.
| Model | Voltage/Power | Speed range | Working radius | Number of chucks | Weight |
| Basic M3-M12 Universal | 220V/600W | 1-625rpm | 1000mm | China Standard 6 | about 30kg |
| Basic M3-M16 Universal | 220V/600W | 1-312rpm | 1000mm | China Standard 8 | about 30kg |
| Basic M3-M24 Universal | 220V/1200W | 1-200rpm | 1200mm | China Standard 8 | about 48kg |
| Upgraded M3-M16 Vertical Touch Screen | 220V/600W | 0-375rpm | 1000mm | China Standard 8 | about 30kg |
| Upgraded M3-M16 Universal Touch Screen | 220V/600W | 0-375rpm | 1000mm | China Standard 8 | about 30kg |
| Upgraded M6-M24 Vertical Touch Screen | 220V/1200W | 0-200rpm | 1200mm | China Standard 8 | about 48kg |
| Upgraded M6-M24 Universal Touch Screen | 220V/1200W | 0-200rpm | 1200mm | China Standard 8 | about 48kg |
| Upgraded M6-M36 Vertical Touch Screen | 220V/1200W | 0-125rpm | 1250mm | China Standard 11 | about 50kg |
| Upgraded M6-M36 Universal Touch Screen | 220V/1200W | 0-125rpm | 1250mm | China Standard 11 | about 50kg |
| Upgraded M12-M48 Universal Touch Screen | 220V/1200W | 0-50/250rpm | 1250mm | China Standard 11 | about 100kg |
