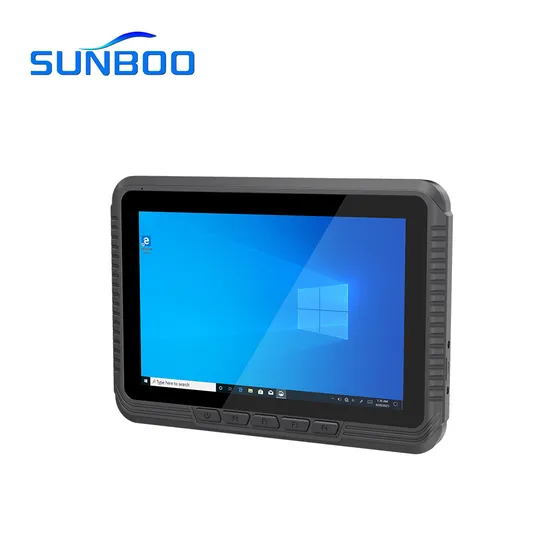

8 Inch Mini Vehicle HDMI PC Medical Field Computer with Desktop
Basic Info.
Model NO.
VPC80J-8
Hard Disk Rack Type
Board Type
Screen Size
8inch
System Expansion Slot
14 Slot
Touch Screen
5 Point
Type
IPS Panel
Size
264.5*184.1* 23mm
Brand
Sunboo
Color
Black
Certificate
CE/RoHS/FCC
Installation
Wall-Mounted
Rack Unit
4U
Power Supply Type
12V 3A
Transport Package
1PCS
Specification
BOX
Trademark
Sunboo
Origin
China
HS Code
8517130000
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
60.00cm * 50.00cm * 40.00cm
Package Gross Weight
2.850kg
Product Description
Performance·Intel Jasper Lake processor Celeron N5100
·Windows 10 OS, Up to 16GB+512GB
·8 inch IPS screen, 700nit
Communication
·2.4G/5.8G Dual band WIFI
·Optional high speed 4G LTE
·BT 5.0 fast transmission
Features
·Optional NFC fast recognition function
·Support GPS, BDS and GLONASS
·Flexible expansion of multiple aviation plugs
Reliability
·IP65 Waterproof and Dustproof
·Wide temperature operation: -20ºC~60ºC
·±8kV Contact Discharge, ±15kV Air Discharge
| Tech Spec | |
| Product Form | 8 inch Vehicle-mount Terminal |
| Material | - |
| Dimension | 218.1*154.5*23.0 mm |
| Weight | 620g |
| Product Color | Black |
| CPU | Intel JASPER LAKE N5100 Max 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 4GB LPDDR3 ROM 64GB EMMC Optional: 8GB, up to 16GB Optional: 128GB, up to 512GB |
| Operating System | Windows 10 Home Optional: Windows 10 IOT Windows10 Pro |
| Display | Type: LCD Size: 10.1 inch 16:10 Resolution: 800*1280 IPS Brightness: 700cd/ |
| Touch Pannel | 5-point tempered glass capacitive screen G+G, hardness 7H |
| Buttons | Power *1 Volume Adjustment Key (+) *1 (F1 Key) Volume Adjustment Key (-) *1 (F2 Key) Customizable *1 (F3 Key) Customizable *1 (F3 Key) |
| Indicator Light | 1. Power indicator (blue when starting) 2. Charging lamp (red when DC is powered on) 3. Full charge indicator light (green when full with battery, not on when no battery) |
| Speaker | 1.5W *1, Single horn (Maximum 2W) |
| Microphone | Single MIC |
| RTC | Built in 2032 RTC dry battery |
| Battery (Tablet) | Optional, Built in polymer lithium ion battery 1000mAh/7.4V 30 mins (50% volume sounds, 200 nits brightness, 1080P HD video display by default), It is used to support normal power off and protect user data. |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance: 10m |
| 4G | Optional, South America or North America module, LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
| GPS | Built in, Ublox 7 supports GPS, GLONASS Optional, Huada Beidou/Ublox M8Q |
| NFC | Optional, NXP300 |
