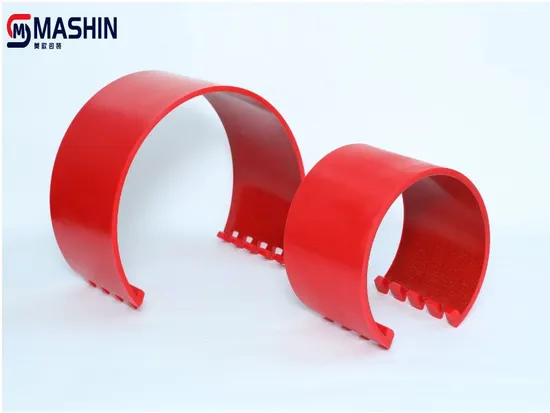

Easy to Operated Polyurethane PU Anvil Covers for Rotary Die Cutter

Product Description

Product Description The unique proprietary urethane formulation can stand the harshest die-cutting applications and extend the life of the die-cutting anvil cover to the maximum rotation time.
With import excellent material and strict quality control, the rubber pad can withstand more intense pressure, impact, and die-cutting, making the anvil cover more durable.
The installation is quick and easy,
and the hardness and size of the pad can be adjusted according to the customer's needs and product characteristics.
Detailed Photos
Our Advantages
1.We have developed the Polyurethane anvil cover to help box makers maximize their machine time. All the design features we've engineered into our anvil covers are intended to save time and money, while producing better quality boxes.
2.We can manufacture PU anvil cover for Corrugated cardboard box production equipment according to customers' special requirements.It has the advantages of abrasion resistance,good hardness,tear resistance,high processing precision,tightened lock catch .
*Custom size,hardness and color of Polyurethane Anvil Cover are available
Installation Instructions Product Parameters

Item No	Dimension
NO01	ID516.4* OD533* Width252.4* 8.3
NO02	ID516.4* OD538* Width252.4* 10.8
NO03	ID516.4* OD538* Width404*10.8
NO04	ID389* OD405* Width252* Slot Width25* Slot Depth14.5
NO05	ID389* OD408* Width252* Slot Width25.4* Slot Depth14.5
NO06	ID271* OD288* Width215* Slot Width25.4* Slot Depth14
NO07	ID328.6mm* OD349mm* Width271mm * Slot Width25mm* Slot Depth14.3m
NO08	ID440.1* OD457.9* Width257* Slot Width25* Slot Depth14
NO09	ID278* OD294* Width200* Slot Width25* Slot Depth14
NO10	ID381* OD400.2* Width408* Slot Width25.4* Slot Depth14.58
NO11	ID341* OD360* Width260* Slot Width25.4* Slot Depth14.5
NO12	ID434.4* OD453* Width240* Slot Width24.5* Slot Depth14.2
NO13	ID306* OD322* Width254*S lot Width19* Slot Depth15
NO14	ID274* OD290* Width210* Slot Width30* Slot Depth13.5
NO15	ID272* OD288* Width250* Slot Width25* Slot Depth14
NO16	ID303* OD320* Width208* Slot Width30* Slot Depth13.5
NO17	ID378* OD400* Width210* Slot Width25.4* Slot Depth14.5
NO18	ID379* OD396.8* Width200* Slot Width29.7* Slot Depth13.6
NO19	ID517.5* OD536* Width226* Slot Width30* Slot Depth13.5
NO20	ID281* OD299* Width241 *Slot Width27.5* Slot Depth10
NO21	ID700.8* OD718.5* Width285* Slot Width25* Slot Depth14.3
NO22	ID398.5* OD416* Width210* Slot Width30* Slot Depth13.5
NO23	ID267*OD283* Width250* Slot Width25* Slot Depth14
NO24	ID381* OD400.2* Width250* Slot Width25.4* Slot Depth14.58
NO25	ID284.2* OD304.3 *Width265 *Slot Width25* Slot Depth14
NO26	OD371*ID350*Width216*Slot Width24*Slot Depth14

*Custom size,hardness and color of Polyurethane Anvil Cover are available
Packaging & Shipping
FAQ Q:How can I get the anvil cover prices?
A: Leave us your email or send inquiry online, we will get back to you within 12 hours.
Q:How about the sample and charge?
A:Samples are free, but you're expected to bear the shipping charge accordingly.
Q:How long is the general delivery time?
A:Normally within 7-15 days after deposit received.
Q:How will you control the quality?
A:We strictly control quality in every working procedure according to ISO:9001 quality management system and have strict inspection
before shipment.
Q: Can I get the customized products?
A:Yes, OEM & ODM projects are highly welcomed.
