Brand:ABB
Type:PFSK164
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
RELIANCE ELECTRIC 45C-231 USPP 45C231
Reliance Electric 800082-1R Power Module Assembly 8000821R
RELIANCE ELECTRIC 0-54220-2 USPP 0542202
75HP, 1800 RPM, 230/460V, 365TSC, Reliance Electric Motor, Epact Eff, W20
Reliance Electric 40FN2042 FLEXPAK 3000 DC Drive 230VAC 40HP 240DC 146A*Tested*
Reliance Electric P40G0459B C 006 XU 100 HP Motor STD Efficient Duty Master
Reliance Electric P36G5227C02 60HP Duty Master Ecomaster A.C. 3PH, 1775RPM
Tension measuring instrument is divided into IP20 and IP65 two kinds of protection level, according to the installation environment for selection, model: PFEL111 PFEL112 PFEL113.
PFEL111: without DP interface, able to connect 2 pressure heads
PFEL112: with DP interface, able to connect 2 pressure heads
PFEL113: with DP interface, can be connected to 4 pressure head
1, Model: PFEA111
Description: Conventional control unit, capable of connecting 2 pressure heads, with IP20 and IP65 protection levels depending on the application environment, with PLC interface signal of 0--10V DC, various calibration and range parameters can be set on site.
2、Model：PFCL201C

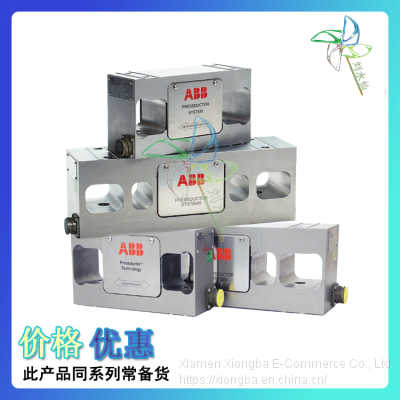

Description: Pillow block type tension meter vertical pressure measuring element, using cylindrical plug connection; measuring force range: 5~50KN;
3、Model：PFCL201CD/CE
Description: Pillow block tension meter vertical pressure measuring element, using cable sealing connector / fixed cable connection with protective hose; measuring force range: 5~50KN;
4、Model：PFTL101A
Description: Pillow block type tension meter horizontal pressure measuring element, cylindrical plug connection, measuring force range: 0.2~2KN.
5、Model：PFTL101AE
Description: Pillow block type tension meter horizontal pressure measuring element, fixed cable connection, measuring force range: 0.2~2KN.
6、Model：PFTL101AER
Description: Acid-resistant pillow block tension meter horizontal pressure measuring element, fixed cable connection, force measuring range: 0.2~2KN. Used for paper wet end tension measurement, protection grade up to IP66/67
7、Model：PFTL101B
Description: pillow block tension meter horizontal pressure measuring element, cylindrical plug connection, measuring force range: 2~20KN.
8、Model：PFTL101BE
Description: Pillow block type tension meter horizontal pressure measuring element, fixed cable connection, measuring force range: 2~20KN.
9、Model：PFTL101BER
Description: Acid-resistant pillow block tension meter horizontal pressure measuring element, fixed cable connection, force measuring range: 2~20KN. Used for paper wet end tension measurement, protection grade up to IP66/67
10、Model：PFTL201C
Description: Pillow block tension meter horizontal pressure measuring element, cylindrical plug connection, measuring force range: 10~50KN.
11、Model：PFCL301E
Description: Mini type paper web tension vertical pressure measuring element, measuring range: 0.2~1KN
12、Model：PFTL301E
Description：Mini type paper web tension horizontal pressure measuring element, pressure measuring range: 0.1~1KN
13、Model：PFRL101D
Description: Radial pressure measuring element, rated load 5.0KN.
14、Model：PFRL101C
Description: radial pressure measuring element, rated load 0.5~2.0KN.
15、Model：PFRL101B
Description: Radial pressure measuring element, rated load 1.0KN.
16、Model：PFRL101A
Description: Radial pressure measuring element, rated load 0.5KN.
17、Model：PFEA113
Description: Tension controller, with four pressure measuring elements, Profibus-DP fieldbus communication function, six configurable analog output ports.
18、Model：PFEA112
Description: Add Profibus-DP fieldbus communication function on the basis of PFEA 111.
19、Model：PFEA111
Description: Tension controller, with two pressure measuring elements, compact and rail-mounted.
20、Model：PFTL201CE
Description: Pillow block type tension meter horizontal pressure measuring element, fixed cable connection, force measuring range: 10~50KN.
21、Model：PFTL201D
Description: Pillow block type tension meter horizontal pressure measuring element, cylindrical plug connection, measuring force range: 50~100KN.
22、Model：PFTL201DE
Description: Pillow block type tension meter horizontal pressure measuring element, fixed cable connection, measuring force range: 50~100KN.
23、Model：PFVL141V
Description: Rectangular measuring element, measuring force range: 0.63~56MN; width range: 70~610mm; length range: 120~1320mm height: 74mm.
24、Model：PFVL141C
Description: Circular pressure measuring element PFVL 141C, force measuring range: 1.6~60MN; diameter range: 210~890mm; height: 74mm.
25、Model：PFVL141R
Description: Toroidal pressure measuring element PFVL 141R, force range: 2~28MN; outer diameter range: 240~895mm; inner diameter range: 100~595mm height: 74mm
26、Model：PXAH401
Description: Millmate OperatUnit 400, panel mounted, can communicate with control unit network. Size: 160×235 ×?60 mm, front protection class IP65, other directions IP20, weight: 1.3 kg.
27、Model：PFVA401
Description: Rolling force controller, can provide excitation to the pressure measuring element, with analog input/output, digital input/output, Ethernet interface, RS232/485 interface, optional high-speed fieldbus communication interface.
28、Model：PFBL141B/C
Description: Vertical force test unit, divided into single/dual rollers, fixed/rotary shaft end different types, measuring range 4 - 400 kN. where the PFBL 141C form factor can be customized according to user requirements.
29、Model：PFEA101
Description：Constant tension closed loop control during unwind and winding, can be connected to pressure measuring elements and torque output devices such as brakes, clutches and motors.
