CNC Gantry Plate Drilling and Milling Machine for Flange and Valve
| US$32,000.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PCD2016
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Processing Size
2000X1600mm
Processing Thickness
15-100mm
Model of Spindle
Morse Taper4#
Feeding Stroke
180mm
Drilling Diameter
12-50mm (Optional: 12-63mm)
Power of Main Motor
5.5 Kw (Optional7.5kw)
Control Mode
PLC+Host Computer
X Axis Servo Motor
2 X 1.5kw
Y Axis Servo Motor
1.5 Kw
Cooling Mode
Forced Circulation Water Cooling
Chip Removal Method
Flat Chain Automatic Chip Conveyor
Dimension
3160X2400X2370mm
Weight
7000kg
Transport Package
Plastic Film as Standard Package
Specification
PCD2016
Trademark
FARIN
Origin
China
Production Capacity
50
Packaging & Delivery
Package Size
4550.00cm * 3050.00cm * 3300.00cm
Package Gross Weight
5500.000kg
Product Description

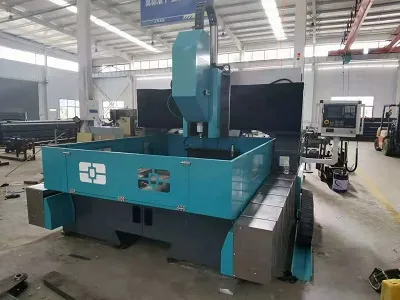

CNC Gantry Plate Drilling Machine PCD2016heet PHD Series
For steel structure, tower, bridge, mechanical processing and other industries of the connecting plate, baseboard drilling processing.
Casting bed, spindle hydraulic feed, motor reducer, workpiece automatic clamping.
This machine is mainly composed of bed, gantry structure, drilling power head, hydraulic system, control system, centralized
lubrication system, cooling system chip removal system and quick change chuck.
1.The bed is made of high quality gray cast iron with stable performance and no deformation.
2.Spindle hydraulic feed, motor and reducer, high efficiency and very durable.
3.Adopt hydraulic clamping system, small workpiece can be clamped at four corners of worktable, shortening production preparation period and improving production efficiency
4. Control system adopt PLC+ Host computer, Lgantry mobile dual servo motor + ball screw synchronous dual drive.
Technical parameters:
| Model | Unit | PCD2016 | |
| Processing size | L×W | mm | 2000x1600 |
| Superimposed thickness | mm | 15-100 | |
| Drilling spindle | Quan. of spindle | pc | 1 |
| Model of spindle | Morse taper4# | ||
| Speed of spindle | r/min | 120-560 Infinitely variable speed | |
| Feeding way | Driller driven by the hydraulic control stroke | ||
| Feeding stroke | mm | 180 | |
| Drilling dia. | mm | Φ12-Φ50(Optional: Φ12-Φ63) | |
| Power of main motor | KW | 5.5(Optional7.5) | |
| Hydraulic clamp | Qty. of clamping cylinder | pc | 12 |
| Clamping force/pcs | KN | 7.5 | |
| Clamping way | Double side button control in Gantry | ||
| Pressure of hydraulic pump | MPa | 6 | |
| Volume of oil tank | L | 100 | |
| Electrical control | Control mode | PLC+ Host computer | |
| X-axis servo motor | KW | 2x1.5 | |
| Y-axis servo motor | KW | 1.5 | |
| Drilling precision | Precision of position | mm | ±0.2mm |
| Precision of repeating position | mm | ±0.1mm | |
| Cooling mode | Forced circulation water cooling | ||
| Chip removal method | Flat chain automatic chip conveyor | ||
| Dimension | LxWxH | MM | 3160x2400x2370 |
| Weight of machine | KG | 7000 |
