High Quality HDPE Aquaculture Fish Farming Floating Net Cages Equipment for Tilapia Fishing Cages 50m

Product Description

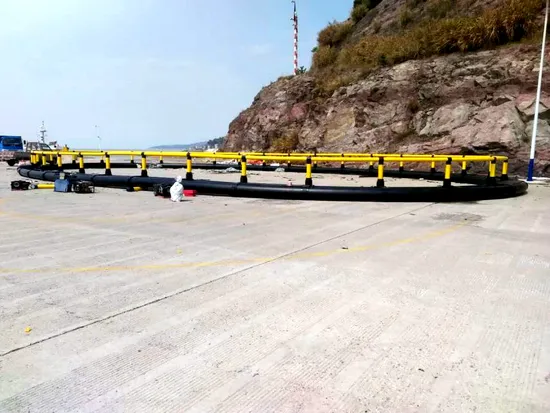

Floating Round Fish Cage
Features of Nanfengwang Fish Cage
Strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,making the cage have a long life. The cage capacity is large and makes a high survival rate.
1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave resistance to 7m,strong ability of current resistance to 1.2m/s.
3.Aquaculture capacity,the living space and growing space are large.
4.The cage has a long life, the cage frame can be used over 15 years.
5.The net can be replaced easily.
6.Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging. Technical specifications:
HDPE round floating cage frame specificaitons

Circumference(M)	Diameter of floating pipe(MM)	Diameter of handrial pipe(MM)	Diameter of stand pipe(MM)
30	200mm	90mm	110mm
40	200mm/250mm	90mm/110mm	110mm/125mm
50	250mm	110mm	125mm
60	250mm/315mm	110mm	125mm
70	315mm	110mm/125mm	125mm
80	315mm	110mm/125mm	--
90	350mm	125mm	--
100	350mm/400mm	125mm	--
120	350mm/400mm	125mm	--
150	350mm/400mm	125mm	--
200	400mm	125mm	--

Cage components:
1. Floating Pipe: The Key part of the pipe, two of a complete Fish cage, inside can be filled with foam which strengthen the Buoyancy(See 7).
2. Handrail Pipe: higher than the floating pipe and water level, can be held by fisherman while feeding or fishing.
3. Bracket: usually every 2 meter of 1 pc, major part of supporting the fish cage structure, including L shape Bracket, triangle bracket, one-hole bracket and two-holes bracket etc., each has deferent features and advantages.
4. Walkway Decking: equipped for more convenient for feeding or fishing, can also be replaced by plank, not a must of a fish cage.
5. Pipe for the Walkway Decking: there are two small holes both in the bracket and the walkway decking, while two small pipes can combine the bracket and walkway decking to make it stronger.
6. Secondary Pipe: make the fish cage more stable.
7. Foam inside the floating pipe: usually only the inside floating pipe will use the foam to add Buoyancy.
8. Pin: combine the handrail pipe and bracket, also the bracket and floating pipe.
9. Stopper: being used at both side of bracket which give a swing space for the bracket. as storm and ocean current, a little space for bracket can bring more elasticity and longer life span for the fish cage.
10. More parts of a fish cage:
Net, Growing net, Cover net and Anti-bird net
Pontoon, Foam
Mooring, rope and anchor etc.
Welding mahine.
…
Mooring system:
Our mooring system is "Grid"system in the deep sea or fresh water,the "Grid"system is made by the ropes and shackles, the cages are in the grid and fixxed bu ropes.Such the cages are united as one group, one cage moves,other cages all move,they are interrelated and mutual restraint to avoid destruction accidents caused by collisions between different cages even in the bad sea condition.
Our Service:
Pre-Sales Service
* OEM and ODM available. According to your location, water area, fish species etc., we can help design fish cage for u.
* Highly welcomed visiting our factory in Dongguan Guangdong China.
* Visiting our project in China, we have many finished Projects in China deferent provinces, u can choose which are suitable and pay a visit.
After-Sales Service
* Engineers can be sent to your distinct for installing Fish Cage, training how to use the machine.
* After sale services are available.
Why choose us?
*Abundant Experience, accomplished many projects from China to Global, including Saudi Arabia and Egypt, while those are very famous program among world.
*Flexible abt the size of the fish cage, no matter how small or big, we can produce cage at best quality, and we are the only company who has the ability for huge cages.
*Best Quality at competitive price, lots of thumb up after sale.
*Long Production line, from pipe to all accessories, from mold design to the production and procession, we can all be self-sufficient, which cut down the cost, and bring much convenience for clients.
FAQ
Q: What is your Raw material ?
A: Only 100% virgin raw HDPE material are used.
Q: What is your MOQ?
A: 1 fish cage available.
Q: what is your delivery time?
A: 1 week for producing, u can pick up from our factory, or we help arrange the shipping, all as your request;.
Q: Can you put your Design and logo on product?
A: Yes, we have professional design service team, also logo can be put.
Q: What's the payment term?
A: L/C, T/T, any as your request.
Q: Still have a lot of questions?
A: Pls feel free contact me at any time.
