Brushless DC Motor Electric Servo Motor/Electric Motorcycle Outboard Boat Motor for Car Conversion Kit

Product Description

Product Description

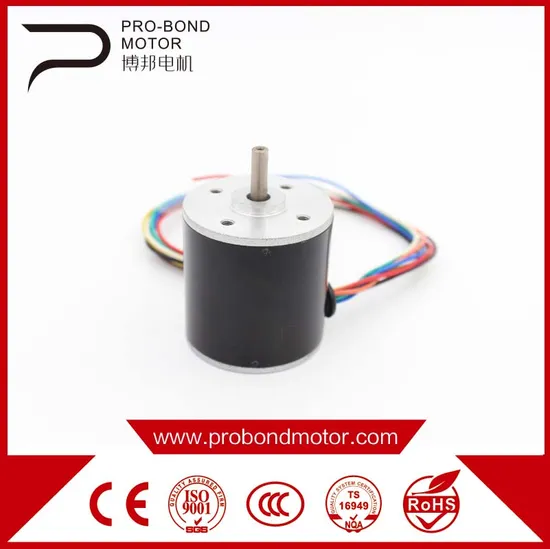

36BL DC Brushless Motor
Basic Information
Item			Performance
Tem. Rise			50K max
Humidity			65%
Working Tem.			(-30ºC~+85ºC)
Insulation Resistance			100MΩ min 250VDC
Surge Test			350VAC for 3s
Insulation Class			A
Drive Mode			Three phase full wave PWM modulation

Motor Spec.
PN	Rated Voltage	Noload Speed	Noload Current	Rated Load	Load Speed	Load Current	Power	Stall Current	Phase
	VDC	rpm±10%	mA±10%	mN.m	rpm±10%	mA±10%	W	A
36BLDC-002	24	6700	100	19.1	5000	680	10	2.5	3

Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements. Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications. The AC/DC gear motors are based upon to distinct magetic circuits that optimize motor design for high speed low torque and low speed high torque. These motors give you lower rotational losses, excellent thermal transfer, interchangeable end caps, easily sealed. Options include connectors, encoders, shaft modifications, dimensional changes, etc. Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others. Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price. Please kindly contact us to get a catalogue.
