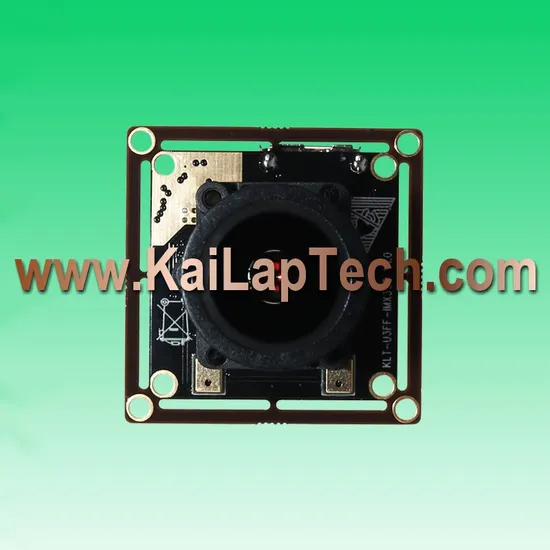

Klt-U3FF-Imx335 V1.0 5MP Imx335 M16 Fester Fokus USB 3.0 Kameramodul

Klt-U3FF-Imx335 V1.0 5MP Imx335 M16 Fester Fokus USB 3.0 Kameramodul

US$45.00-50.00 100 Pieces (MOQ)

Basic Info.

Model NO.
KLT-U3FF-IMX335 V1.0
Interface Type
USB 3.0
Specification
38mm x 38mm / 32mm x 32mm
Origin
China
Production Capacity
500000 Pieces

Product Description

5MP IMX335 M16 Fester Fokus USB 3.0 Kameramodul
Kameramodul Nr. KLT-U3FF-IMX335 V1.0
Kameramodul Nr. KLT-U3FF-IMX335 V1.0
Auflösung 5MP
Bildsensor IMX335
Sensorart 1/2.8"
Pixel Größe 2.0 um x 2.0 um
EFL 3.91 mm
F.NO 1.08
Pixel 2592 x 1944
Betrachtungswinkel 106.0°(DFOV) 92.6°(HFOV) 48.6°(VFOV)
Linsenabmessungen 23.50 x 19.50 x 36.94 mm
Modultyp Fester Fokus
Linsenmodell KLT-LENS-PH6005E-H043B
Schnittstelle USB 3.0
Ausgabeformat MJPG / YUV2
Automatische Steuerung Sättigung, Kontrast, Schärfe
Weißabgleich, Belichtung
Audio Keiner
Automatische Steuerung DC 5V
Arbeitsstrom Max 500mA
PCB-Größe 38mm x 38mm / 32mm x 32mm
Systemkompatibilität Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC Treiber
Raspberry Pi by USB-Anschluss
Software für USB-Kamera AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam
Linsentyp 650 nm IR-Schnitt
Betriebstemperatur -30°C to +85°C
USB-Kabel KLT-Cable-U007
