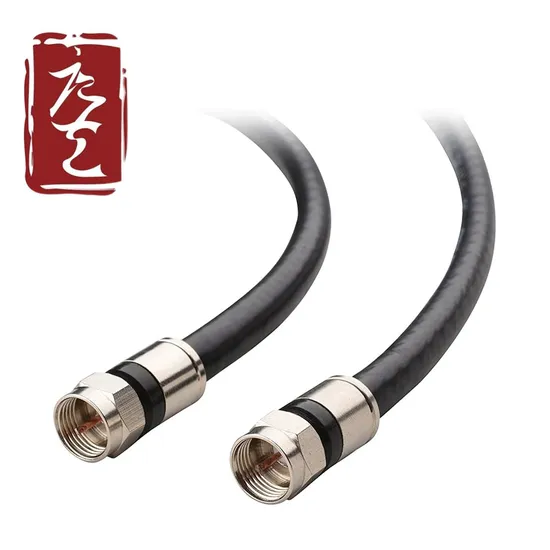

PE PVC RF Coaxial Cable CATV Cable RG6 Copper CCA CCS

PE PVC RF Coaxial Cable CATV Cable RG6 Copper CCA CCS

US$0.10
15,000-99,999 Meters
US$0.02
100,000+ Meters

Basic Info.

Model NO.
RG6
Sheath Material
PVC
Insulation Material
Foam PE
Material Shape
Round Wire
Certification
CE, RoHS
Color
Black, White, Transparent
Brading
40%-100%
Impedance
75
Length
50m/100m/300m/305m
Transport Package
Neutral Carton
Trademark
OEM
Origin
Zhejiang, China
HS Code
85442000
Production Capacity
200000meter/Month

Product Description

Product Description Feature
1.Greater signal reliability
2.Durable and Reasonable Design of the Structure Realizes the High Performance
3.Heavily shied to minimize interference
4.Fine Shields Protect the Data Transmission and Reduce the Interference
Application
RG6 coaxial cable is suitable for many applications, including low power video, video signal and broadband signals. It can also be used in high-frequency transmission, especially for transmitters and receivers, computers, radio and TV transmitters.
Technical Data GOOD Singal Coaxial Cable RG6 for CCTV
Construction and Dimension
Item RG59 RG58 RG6 RG7 RG11
Material of inner conductor Cu Cu Cu Cu Cu
Diameter of inner conductor(mm) 0.81±0.02 19*0.20±0.01 1.00±0.02 1.29±0.02 1.63±0.02
Material of dielectric Foam PE PE Foam PE Foam PE Foam PE
Diameter of Dielectric(mm) 3.66±0.15 2.95 4.57±0.01 5.72 7.11
Material of Shield AL foil+Al braiding BC/TC braiding AL foil+Al braiding AL foil+Al braiding AL foil+Al braiding
Coverage 40%--95% 95% 40%--95% 40%--95% 40%--95%
Diameter of 1st outer conductor
(mm)
3.90 - 4.90 5.90 7.52
Diameter of 2nd outer conductor 4.12 -- 5.00 - 7.80
Material of Jacket PVC\PE PVC\PE PVC\PE PVC\PE PVC\PE
Diameter of Jacket 6.30 4.95 6.90 8.10 10.16
IMPEDANCE 75±3 Ω
Attenuation
(20ºC, ≤dB/100m)
Frequency (MHz) Max.dB/100m
5MHz <3.5
55MHz <5.25
211MHz <10.0
250MHz <10.82
270MHz <11.04
300MHz <11.64
330MHz <12.26
350MHz <12.63
400MHz <13.61
450MHz <14.43
500MHz <15.29
550MHz <16.08
600MHz <16.73
750MHz <18.54
870MHz <20.04
1000MHz <21.49
1450MHz <26.94
1800MHz <30.24
2000MHz <32.09
2200MHz <32.15
2300MHz <32.87
2500MHz <34.25
2700MHz <35.60
3000MHz <37.53

Packing:
Neutral Packing
1. 50m/100m/300m/305m/100yard/300yard can be
packed in clarity film, several rolls into one carton.
2. 300m/305m/500m/300yard can be packed in wooden drum, one or two drums into one carton.
3. Customized packing are welcomed!
FAQ
1. What' s our main product? TY dedicated to the developing, production, marketing of the Coaxial cable, Fiber Optic Cable. Indoor/ Outdoor Patch Cord, Communication cable, and so on.
2. Do you provide samples? Is it free or extra? Some of low value samples can be free for you, but you need pay for the express cost.3.
3. Can i negotiate the prices? Yes, we may consider discounts for multiple container load of mixed goods.
4. Can you produce according to the samples? Yes,we can produce by your samples or technical data.
5. How can i get your catalogue and price list? Please let us know your email or contact us from website directly for our catalogue and price list.
6. Do you provide OEM service? Yes, We supply OEM&ODM service.we can print your logo or label on the products or on the box.
7. Why choose us? Our company has more than 10 years experience of manufacturing of coaxial cable, optical communication units and doing network system integration system,we have our own production factory and stable raw material suppliers of many years cooperation. So our products have very stable quality and competitive price.
8. How much will the shipping charges be? It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
9. Shipping& Delivery For large orders:by sea(LCL or FCL)
For small orders:by sea(LCL), by air or by courier services, any of which is optional.
10. I haven't bought anything from China. Can I buy it?
We cooperate with shipping companies. Our company has a professional transportation and delivery team. Our colleagues will help you and finally let you receive your goods smoothly.
If you can't find the products from our web, pls send the inquiry to us,even if we can't produce them ,we know china market very well ,so maybe we can tell you where you can buy the products you needed !
