Rectangular or Circle Bubble Tight Isolation Damper ASME N510
| US$299.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KUTI
Type
Direct-acting
Material
Stainless Steel
Connection Form
Flange
Pressure
High Pressure
Actuator
Electric
Seal Surface
Parallel Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Usage
Flow Control, Leakage Control
Standard
ANSI
Application
Industrial Usage
Leakage Rate
0
Max. Pressure
7000 PA
Test Standard
ASME N510
Casing Material
Stainless Steel 304
Optional Actuator
Manual,Pneumatic
Transport Package
Carton
Specification
Customized
Trademark
OEM
Origin
China
Product Description

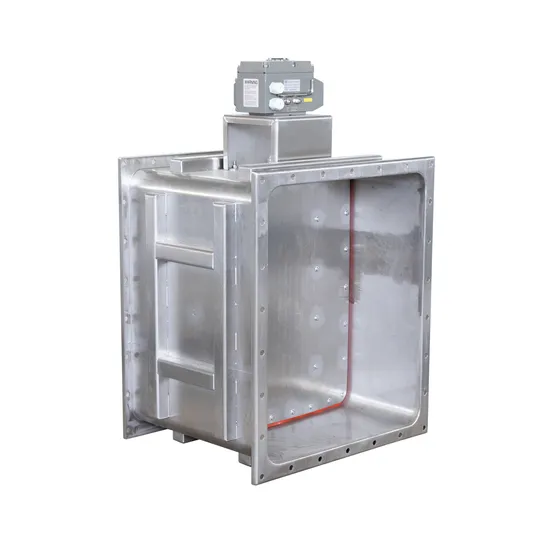

Bubble-tight damper designed for isolation applications. Bubble-tight means the damper has the lowest possible leakage rating: zero. The silicone blade seal and double-gland axle seals provide bubble-tight performance. Standard bubble-tight damper includes a manual handwheel actuator. There are many options when considering electric or pneumatic actuators. Some include solenoid valves and switches. Contact factory for assistance. Typical applications: Isolate filters and contaminated components in bag-in/bag-out systems.
Construction
The damper is constructed of stainless steel 304, with flanges fully welded to both ends with minimum flange to flange distance of 200 mm.
Available in square flanges for easy BlBO housing connections. Bolting holes at flanges are provided.
Airtightness
The initial pressure was at least 3000Pa lower than the ambient pressure, the hourly leakage rate does notexceed 0.25% of housing volume.
The operation is manual, optional electric or pneumatic actuator.
