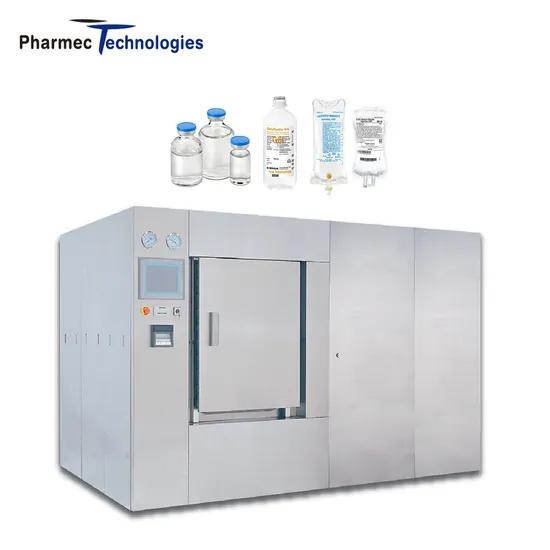

GMP-Compliant Superheated Water Shower Sterilizer for Aseptic Production
| US$80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PT-PSM-1.0
Certification
CE, ISO13485
Electric Tension
380V
LCD Display
With LCD Display
Ultra High Temperature Alarm
Ultra High Temperature Alarm
Sterilization Information Recording and Printing
Sterilization Information Recording and Printing
Material
Stainless Steel
Weight
2000-4800kg
Steam
80-460kg/Cycel
Water
2050-11760L/Cycel
Water (Circulating)
180-810 L/Cycel
Power
220V/Kw
Voltage
380V
Customized
Standard/Customized
After-Sales Service
Field Installation, Commissioning and Training
Transport Package
Wooden
Specification
Standard/Customized
Trademark
Pharmec
Origin
China
Production Capacity
1000 Sets/Year
Product Description
GMP-Compliant Superheated Water Shower Sterilizer for Aseptic ProductionProduct Description Introduction
PT-PSM Series Water Shower Sterilizer is used for the sterilization of glass bottles, plastic bottles and bags in pharmaceutical enterprises and medical institutions as well as the sterilization of canned drinks and food in food enterprises. It adopts circulating water with high temperature as medium to spray products to heat and cool. This series can realize no burst of bottles or bags and uniform sterilization under low temperature.
Product Parameters
| Equipment | Door | Trolley | Chamber Dimension Volume mm | Overall | Weight | Plant | Cooling | Deionized | C A Nm3/h | Control | Driver |
| Model | Dimension mm | (Unloading) Kg | Steam Kg/cycel | Water L/cycel | Water (Circulating) L/cycel | Power 220V/Kw | Power 380V/Kw | ||||
| PT-PSM-1.0 | 2 | 2 | 1700*610*910/0.94m3 | 1990*2796*1940 | 2000 | 80 | 2050 | 180 | 10 | 1 | 3 |
| PT-PSM-1.2 | 2 | 1 | 1500*680*1180/1.20m3 | 1812*2871*1940 | 2300 | 90 | 2310 | 180 | 12 | 1 | 3 |
| PT-PSM-1.5 | 2 | 2 | 1870*680*1180/1.50m3 | 2182*2871*1940 | 2500 | 110 | 2810 | 220 | 15 | 1 | 3 |
| PT-PSM-2.0 | 2 | 2 | 2500*680*1180/2.04m3 | 2812*2871*1940 | 2700 | 145 | 3710 | 280 | 20 | 1 | 3.85 |
| PT-PSM-2.5 | 2 | 2 | 2100*1000*1200/2.52m3 | 2462*3200*1990 | 2900 | 190 | 4870 | 340 | 25 | 1 | 5.5 |
| PT-PSM-3.0 | 2 | 3 | 2500*1000*1200/3.00m3 | 2862*3200*1990 | 3100 | 220 | 5630 | 400 | 30 | 1 | 5.5 |
| PT-PSM-4.0 | 2 | 4 | 3400*1000*1200/4.08m3 | 3762*3200*1990 | 3500 | 300 | 7670 | 540 | 40 | 1 | 5.5 |
| PT-PSM-5.0 | 2 | 4 | 4200*1000*1200/5.04m3 | 4562*3200*1990 | 4200 | 370 | 9470 | 660 | 50 | 1 | 7.5 |
| PT-PSM-6.0 | 2 | 5 | 5200*1000*1200/6.24m3 | 5562*3200*1990 | 4800 | 460 | 11760 | 810 | 60 | 1 | 11 |
