CE Approved High Precision CNC Milling Machine CNC Milling Tools for Metal Szgh-540

CE Approved High Precision CNC Milling Machine CNC Milling Tools for Metal Szgh-540

US$7,000.00
1-999 Pieces
US$6,000.00
1,000+ Pieces

Basic Info.

Model NO.
SZGH-540
Type
Meter Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Travels
X:400mm Y:500mm Z:200mm
Number of Axes
3
Base Weight
1200kg
Weight
1900kg
Transport Package
Wooden Box Package
Specification
1650*1800*2450 mm
Trademark
SZGH
Origin
China
Production Capacity
50000PCS / Year

Product Description

Product Otherview

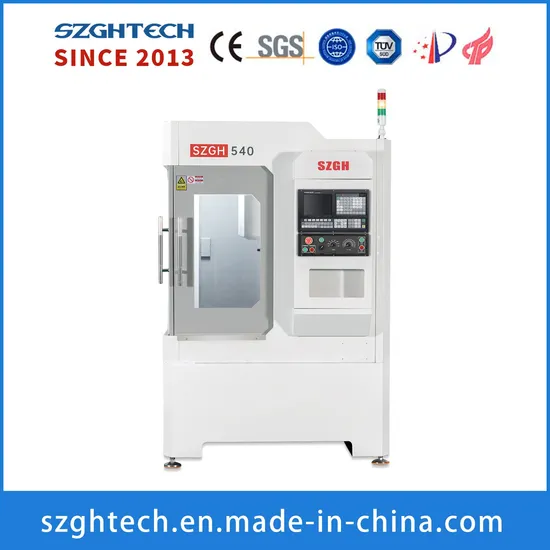

CE Approved High Precision CNC Milling Machine CNC Milling Tools For Metal SZGH-540
SZGH-540 CNC milling machine is suitable for 8-station processing of copper, iron, aluminum and stainless steel workpieces within 500mmX400mm. The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 8mm and drilling within 10mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improve per capita output efficiency and reduce processing costs.
Standard Configuration
Project SZGH-540 SZGH-650
Processing capacity Max. drilling diameter Aluminum φ14mm/ Steel φ10mm Aluminum φ40mm/ Steel 30mm
Max. Tapping Diameter Aluminum m10mm/ Steel m8mm Aluminum m25mm/ Steel m20mm

Max. milling cutter diameter
φ60mm φ100mm
Max Spindle speed 5000rpm/9000rpm/30000rpm 6000rpm/24000rpm
Handle Type BT30 BT40/BT30
Magazine capacity 6 gangs/8 magazines 10 gangs/12 magazines
Repeatability 0.01mm 0.01mm
Surface engraving accuracy ±0.06mm/±0.01mm ±0.02mm/±0.01mm
workbench Distance from table surface to spindle end Minimum 150mm Maximum 350mm Minimum 150mm Maximum 450mm
Effective stroke of working surface 500mm*400mm 600mm*500mm
Travels X-axis effective travel 400mm 500mmm
Y-axis effective travel 500mm 600mm
Z-axis effective travel 200mm 300mm
Feed X-axis rapid traverse 30m/min 30m/min
Y-axis rapid traverse 30m/min 30m/min
Z-axis rapid traverse 25m/min 25m/min
Various cutting suggested speeds 10m/min 10m/min
Spindle Max.Spindle Speed 5000rpm/9000rpm/30000rpm 6000rpm/24000rpm
Spindle Motor Power 2.6km/3.7kw/4.5kw 3.7km/5.5kw/7.5kw
Spindle type mechanical spindle/ electric spindle mechanical spindle/ electric spindle
Spindle taper BT30 BT40/BT30
Dimensions Dimensions 1350*1050*2050mm 1650*1800*2450mm
Total Weight 1900kg 2900kg

Machine tool specifications and component items SZGH-540 SZGH-650
Part Specifications Screw 25mm Taiwan precision p grade 32mm Taiwan precision p grade
Guide rail 25mm Taiwan Precision C3 Grade 32mm Taiwan Precision C3 Grade
Spindle BT30 spindle BT40/BT30 spindle
Feeding servo X.Y750w,&1.2kW X.Y1.2kw,&1.5kW
Spindle servo motor 2.6kW/3.7kw/4.5kw 3.7kW/5.5kw/7.5kw
Tool magazine 6 /8 magazines 10/12 magazines
Base form 1200kg Heavy-duty anti-deformation patented base 1800kg Heavy-duty anti-deformation patented base
Optional 4 axis 4 axis center height 125mm/170mm 125mm/170mm
4 axis motor power 0.75kw/1.2kw 0.75kw/1.2kw
4 axis system SZGH SZGH
4 axis servo SZGH SZGH
Optional 5 axis 5 axis center height 160mm 160mm
5 axis motor power 0.4kw/0.75kw 0.4kw/0.75kw
5 axis system SZGH SZGH
4 axis servo SZGH SZGH

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.

Optional Accessories
Similar Products
Application
Company Introduction
Brief Overview 1. We are a company specializing in the manufacture of CNC systems, turning and milling machine machines, and industrial robots.Since its establishment, we have more than 10 years of experience, and we have successfully exported our products to all countries in the world. Our company is committed to providing high-quality, high-performance machinery and equipment to meet the needs of customers.
2. As a technology company, our products cover the fields of CNC systems, mini CNC turning machines, turning and milling machines, and industrial robots. We use state-of-the-art technology and innovative design concepts to continuously push the industry forward. Our team consists of a group of experienced and skilled engineers and experts with in-depth knowledge and expertise in the field of mechanical engineering and automation. Advantages of our company
1) High-quality products: We are committed to providing high-quality machinery and equipment, using advanced manufacturing technology and strict quality control to ensure the reliability and stability of products. Our products are rigorously tested and quality verified to ensure compliance with the highest industry standards.
2) Technological innovation: We continue to pursue technological innovation and research and development, leading the development trend of the industry. We work with research institutes and partners to research and develop new technology applications to provide customers with more efficient and intelligent solutions.
3) Customer customization: We fully understand the unique needs of each customer and provide customized solutions. Our team of engineers works closely with our customers to ensure that our products and services meet their specific requirements and provide the best solutions.
4) Global market expansion: We have successfully exported our products to all countries in the world, and established an extensive international sales network. We have an in-depth understanding of the needs and trends of each market and provide our customers with global support and services.
5) After-sales service: We attach importance to long-term cooperative relations with customers, and provide comprehensive after-sales service and technical support. Our after-sales team is always ready to answer customers' questions and provide training and maintenance support to ensure customer satisfaction and the normal operation of equipment.
FAQ
Q1. Who are we?
A1: We are based in Guangdong, which provides CNC total solutions& cnc lathe machine&milling machine
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
Q2. How can we guarantee the quality?
A2: Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
Q3. How does your CNC machine work with my production schedule?
A3: Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your
needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
Q4. What services can we provide?
A4: 1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Italian, and so on.
Q5.What is control mode for feeding Axes?
A5: Our Normal CNC support Pulse+Direction signals for feeding axes drivers; Our Modbus CNC support EtherCAT /Powerlink modbus for feeding axes drivers.

Q6.What is control mode for spindle axes?
A6: There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.

Q7.Does your cnc support ATC function?
A7: Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
Q8.Does your cnc support booting logo exchange?
A8: Yes, no problem.
