13D Rod Breakdown Copper Wire Drawing Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Metal Material
Copper, Aluminum, Steel, Stainless Steel
Outlet Diameter
0.5-4.5mm
Max.Inlet Wire Dia.
9.5mm
Block Dia.
450mm
Max. Number of Block
13
Certification
ISO
Condition
New
Inlet Dia
9.5mm or 2*9.5mm
Wires
1 or 2
Outlet Dia
1.6-4.5mm
Max. Speed
30m/S
Max Drawing Pass
13
Installed Capacity
300-600kVA
Overall Dimension
22*6*5-24*10*5
Transport Package
Standard Wooden Package or Customized
Specification
Customized
Trademark
Reliable
Origin
China
Product Description
Copper Rod Breakdown Machine with Individual Motors1.Description: Produce copper wires sized φ1.2-4.5mm from aluminum rods of φ8mm with online annealer;
According to customer needs to provide 9, 11, 13 die wire drawing machine;
Single motor drive or individual motor drive RBD machine with one wire or 2 wires.
Optional: single spooler, double automatic spooler, vertical pay-off or combination of various take-up forms;
Using MMI+PLC control system, production line synchronization control, online monitoring, process parameters can be modified, storage, reading in the touch screen with easy operation;
Threading machine, heat exchanger, steam generator and filter are available for customer choice.

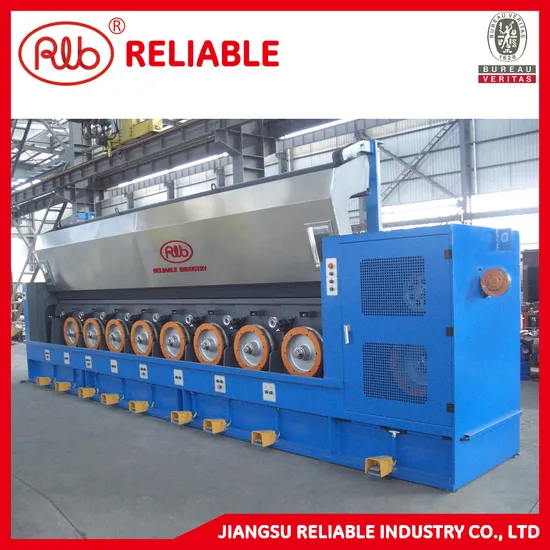

2,Equipment Pictures
3.Technical parameters
| Drive Mode | Model | Inlet Dia (Mm) | Wires | Outlet Dia (Mm) | Max.Speed (M/S) | Max Drawing Pass | Capstan Dia(Mm) | Installed Capacity (Kva) | Take-Up Type(Optional) |
| Shunt Drive | LWHD-450/9 | φ8 | 1 | Φ2.1-4.2 | 25 | 9 | φ450 | 400 | 1:630 Single bobbin take-up 2:630 Dual bobbin take-up 3:800 Single bobbin take-up 4:800 Dual bobbin take-up 5:820 Vertical pay-off 6: Or above combination |
| LWHD-450/11 | φ8 | 1 | Φ1.7-4.2 | 28 | 11 | φ450 | 450 | ||
| LWHD-450/13 | φ8 | 1 | φ1.2-φ4.2 | 30 | 13 | φ450 | 500 | ||
| LWHD-450/9(2) | 2xφ8 | 2 | 2xφ2.05-3.2 | 25 | 9 | φ450 | 900 | ||
| Linear Single Motor Drive | LHD-450/9 | φ8 | 1 | Φ2.1-4.2 | 25 | 9 | φ450 | 400 | |
| LHD-450/11 | φ8 | 1 | Φ1.7-4.2 | 28 | 11 | φ450 | 450 | ||
| LHD-450/13 | φ8 | 1 | φ1.2-φ4.2 | 30 | 13 | φ450 | 500 | ||
| LHD-450/9(2) | 2xφ8 | 2 | 2xφ2.05-3.2 | 25 | 9 | φ450 | 900 |
4.Layout:
5.Application Demonstration
Application Demonstration: According to the need, it can be configured with a variety of take-up machine;
