T113-i 256MB Flash IoT Gateway ARM Embedded Industrial Open Source Run Linux
Basic Info.
Model NO.
BL330
CPU Type
ARM
Hard Disk Rack Type
ARM
Operating Temperature
-40℃ to 70℃
RAM
256/512MB/1G DDR3
Screen Size
No
Storage Capacity
eMMC 4/8G
System Expansion Slot
Mini PCIe
Touch Screen
No
Type
IPC
CPU
(AllWinner)T113-i, Dual-Core A7
Clock Speed
1.2GHz
Input Voltage
DC 9-36V
Ethernet
1~3*RJ45
Transport Package
Box
Trademark
BLIIoT
Origin
China
HS Code
8531100000
Production Capacity
10000 Piece/ Month
Packaging & Delivery
Package Size
22.00cm * 20.00cm * 11.00cm
Package Gross Weight
0.700kg
Product Description

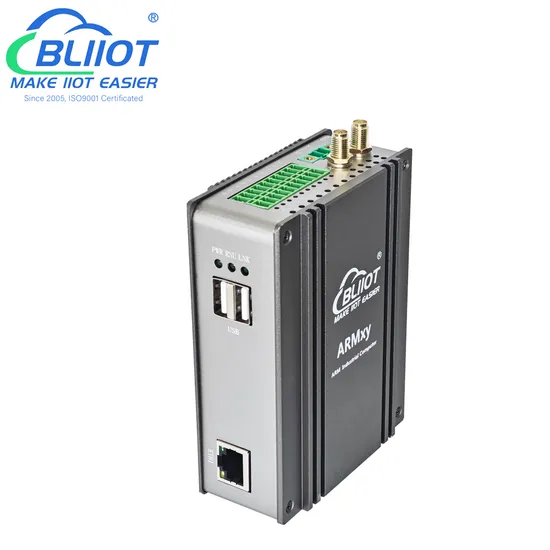

T113-i 256MB Nand Flash IoT Gateway ARM Embedded Industrial Open Source Run Linux OS Product Description The ARMxy BL330 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the Allwinner Technology T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor. This industrial-grade computer features an ARM Cortex-A7 processor with clock speed of up to 1.2GHz. It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByte DDR3 RAM and ROM.The BL330 series ARM embedded computer offers a rich array of interfaces including 1 x 1000Mhz Ethernet port,2 x optional 100Mhz Ethernet ports,2 x USB 2.0 ports,1 x optional HDMI 2.0a port,1 x optional X series IO board,2 x optional Y series IO boards.These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL330 also supports hardware decoding of 1080P@60fps videos.Product Parameters ARMxy BL330 Model List
| Model | ETH | USB | HDMI | X board IO Slot | Y board IO Slot | Dimension |
| BL330 | 1x1000Mhz | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL330A | 1x1000Mhz | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL330B | 1x1000Mhz | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL330C | 1x1000Mhz | 2 | X | 1x10PIN | X | 42x83x110mm |
| BL331 | 1x1000Mhz, 1x100Mhz | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL331A | 1x1000Mhz, 1x100Mhz | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL331B | 1x1000Mhz, 1x100Mhz | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL332 | 1x1000Mhz, 2x100Mhz | 2 | 1 | 1x6PIN | X | 42x83x110mm |
| BL332A | 1x1000Mhz, 2x100Mhz | 2 | 1 | 1x20PIN | X | 42x83x110mm |
| BL332B | 1x1000Mhz, 2x100Mhz | 2 | 1 | 1x20PIN | 2 | 48x83x110mm |
| Model | MCU | Clock Speed | Kernel | Nand Flash | eMMC | DDR3 | Temperature |
| SOM330 | T113-i | 1.2GHz | 2 x A7 | 256Mbyte | / | 256MByte | -40~85°C |
| SOM331 | T113-i | 1.2GHz | 2 x A7 | 256Mbyte | / | 128MByte | -40~85°C |
| SOM332 | T113-i | 1.2GHz | 2 x A7 | / | 4GByte | 256MByte | -40~85°C |
| SOM333 | T113-i | 1.2GHz | 2 x A7 | / | 4GByte | 512MByte | -40~85°C |
| SOM334 | T113-i | 1.2GHz | 2 x A7 | / | 8GByte | 512MByte | -40~85°C |
| SOM335 | T113-i | 1.2GHz | 2 x A7 | / | 8GByte | 1GByte | -40~85°C |
| SOM336 | T113-i | 1.2GHz | 2 x A7 | / | 4GByte | 256Mbyte | -20~70°C |
