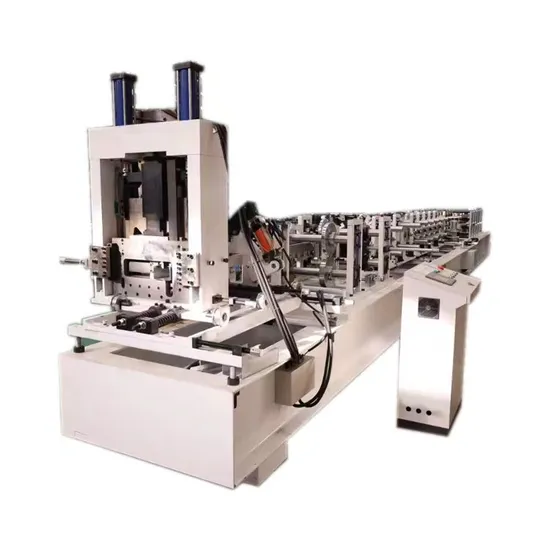

Fully Automatic C Z Purlin Cold Roll Forming Machine for CZ Channel Steel Build Framing Material

Product Description

Product Description
Fully Automatic C Z Purlin Cold Roll Forming Machine For CZ Channel Steel Build Framing Material
Hener manufactured cz purlin roll forming machine,also called fast change steel purlin making machine or C &Z channel interchangeable roll forming machine,can be used to produce both c pulin and z purlin with various sizes,in different thickness,and with punch on web and flange side.
Fully Automatic Customized Interchangeable CZ Purlin Cold Roll Forming Machine Steel Structure Steel Framing Machine
The cz shape interchange unit is controlled by manual ,and size change unit is controlled by PLC and change by set on touch panel,Aslo we have Semi Automatic cz purlin machine available.
1.Raw material:galvanized sheet 1-3mm
2.product size:C purlin80-300mm,Z purlin:100-300mm,If you need other size,we can customized that machine for you.
3.machine speed :max 25M/min
Product Parameters
profile drawing
Machine production flow chart
Machine parameters
Fully Auto

Feeding Part:
1	Positioning plate	adjust the position of both ends to make it fit the width of the feed.
2	Guide frame	play a role in supporting the transport of the material roll.
3	Guide roller	The upper and lower round rollers are designed to make the feeding process more smooth.
4	Leveling system	1.Leveling shaft:up 3 + down 4 2.material:c45# 3.Processing technology: rough turning + high frequency heat treatment HRC50-55+cylindrical fine grinding + surface polishing and hard chrome plating

atic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure Steel Framing Machine

Mian roll forming:
1	shaft diameter	75mm
2	The material of shaft	All rolling shafts are made by high quality No. 45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long term without deformation
3	Roller material	All rollers material adopt high quality GCr15, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
4	Frame tie rod	35 # electroplate round steel to increase rigidity on both sides of wall panel
5	Roll forming	Roll forming process of coil
6	Motor power	22kw

Cutting after forming:
1	Guide mechanism	make the knife holder cut smoothly without deformation of the cut.
2	Cast iron tool holder	obvious shock absorption effect and strong impact resistance
3	Blade material	Cr12 The cutting life exceeds 1 million times
4	Rear scissor frame	Q235 steel plate, annealing treatment after rough turning, finishing
5	Cutter	1 Set cutter for all Sizes, no need to change cutter for each purlin and specification

Hydraulic system:
1	power	22kw
2	with fan	In order to ensure that the machine works for a long time, our machine is equipped with a fan,
3	function	Control cutting device and main former and punching device

PLC control system :
1	Encoder	OMRON
2	PLC/inverter	Taiwan Delta

Certifications
successful project
Application of purlins: Many houses use purlins to lift the rafters to support the rafters. The purlins are made into roof beams, and the paving and tiles are placed on the roof truss or diagonal beams of the house. The steel purlin from purlin machine is lighter in size, which is in line with the characteristics of the roof purlin.
Our clients' projects:
Packaging & Shipping
Main body is covered with plastic film and fixed well by wire rope in container;
Rollers are painted by rust oil;
Spare parts are packed by carton box;
We have professional technicians for loading, guaranteed the goods load into container without any damage;
Transportation : one set Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure Steel Framing Machine need one 40 feet container to hold.
Company Profile
Cangzhou Hener Machinery is a professional integrating R & D, production, sales, export and service. We have professional foreign trade sales team, operation team, R & D team and after-sales team. Our R & D cycle for new products is at least 20 days. The working experience of our sales team is 5-6 years. The R & D personnel are all undergraduates. The average equipment maintenance experience of after-sales engineer is 10 years. In order to supply the satisfactory products and services, we have built a modern quality management system which is in strict accordance with international standards.
After Sales Service
1.we can provide all kind of roll forming equipment which can be used to forming all kinds of shape as you required. The company can make non-standard products for client's requirement. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
2.About after-sales service. We provide online training for life, you can also come to our company to learn, there will be professional staff to teach, you can also send technicians to your country to repair the machine. The buyer shall bear all costs. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
3.The warranty period is 12 months. We will provide you with lifetime technical support. The machine can be repaired free of charge for the first year after purchase, including replacement of main components.
FAQ
1. Does one machine can only produce one style panel profile?Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep
your business running. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
3. How to visit your company?a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. Fully Automatic Customized Interchangeable C Z Purlin Cold Roll Forming Machine Steel Structure C Z Channel Roll Forming Machine
