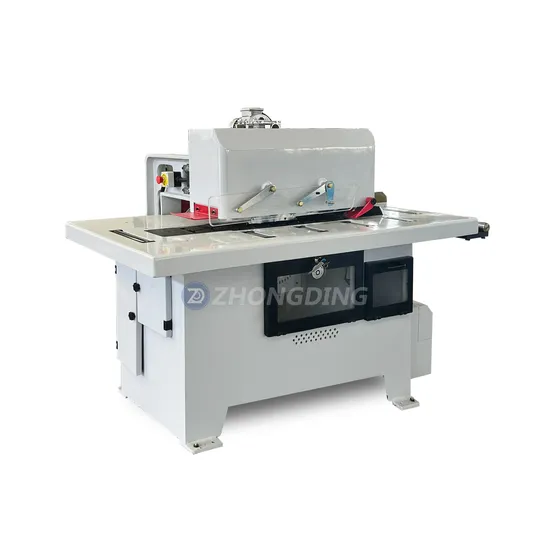

Heavy Duty Automatic Rip Saw for Woodworking with CE Certification

Product Description

Product descriptions from the supplier
Overview
Features: The track-type feeding chains wear well and boast high conveying planning accuracy The new clamper makes the feeding more stable The super-long guide rail guarantees the straightness timber of length The sealed electric cabinet prevents the dust and any accidents thereof The three-layer rebounder makes the timber hard to rebound and ensures human safety Machine is equipped with air dust removal device , to ensure processing environment clean
Product Specifications

Model	MJ153
Working thickness	85mm
Min. working length	120
Saw blade&fuselage distance	460
Saw spindle diameter	φ30mm
Saw diameter and sawing height	φ250(10-60)mm
Mainshaft speed	3500
Feeding speed	13\17\21\23
Main saw motor	7.5
Feeding motor	0.75
Dust output diameter	φ100mm
Inner dust collector	/
Size within the container	2024*1337*1480
Machine weight	1000

Product Details
1. Lubrication
The automatic lubrication system circulates and lubricates the entire equipment to ensure efficient operation and prolong service life

2.Rebound device
The anti-recoil device of the conveyor avoids the kickback of the workpiece and ensures cutting safety.

3.Processing station
The surface of the tabletop is treated with anti-rust ,and the top is smooth and durable.

4.feeding
Conveyor chain blocks made by special materials with tooth surface for better friction and resistance ,stock feeding more smooth

5. Side protection
Specially designed side guard can prevent chips or knurls from spilling out to hurt people efficiency and prevent the operator putting his hand into the machine

6.Infrared
Selected for infrared calibration device ,the workpiece; calibration can be real-time monitoring

Application
venner MDF PVC
