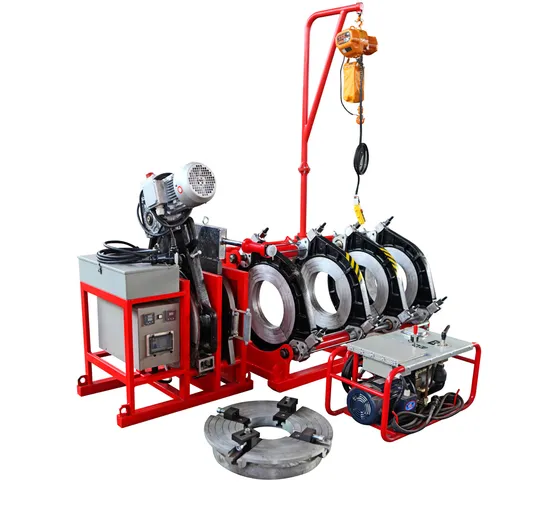

HDPE Pipe Welder/HDPE Pipe Welding Machine for 450mm Pipe

Product Description

Plastic Pipe Welding Machine
Product Description
1. Available for pipes with max dia.: 450 mm
2. Hydraulic type welding machine
3. Available for PE/PP/PVDF/PVC and other thermoplastic pipes
4. Prompt goods to delivery
This machine is designed for butt welding of pipe-to-pipe and pipe-to-fitting of PE PP PVDF and other thermo-plastic materials. It can work in trenches, worksite and workshop, and it is an ideal joining equipment for water and gas supply pipelines.
1. Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.
2. Safety switch enables the trimmer to start only when it is located in the operation position.
3. A mechanical lock excludes the disengagement of the trimmer during the operation
4. Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller
5. Low temperature difference in heating plate surface, within 7 degree
6. Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers
7. Imported oil seal & quick couplers
8. Fine operation panel with clearly strong meshing printing characters.
9. Warranty period: 12 months
SPECIFICATION:

Model	TSD500
Welding range	250,280,315,355,400,450,500mm
Power supply	380V±10%, 50Hz
Overall cylinder section	23.1CM2
Max. Pressure	6MPa
Total power	12.2KW
Heating plate power	9.2KW
Trimmer motor power	1.5KW
Hydraulic unit motor power	1.5KW
Heating plate Max. Temp.	270ºC
Heating plate temperature difference	±7ºC
Manufacture standards	ISO12176-1
Overall Weight (kg)	622KG
