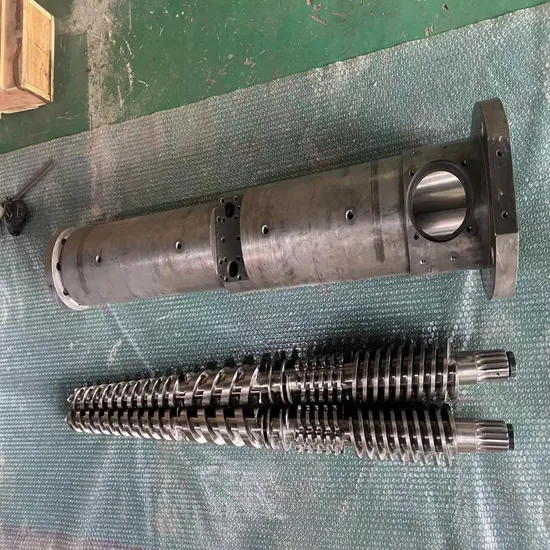

Kmd Kk40 Kk50 Kk60 Conical Twin Screw Barrel for Profile Extrusion
| US$2,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QBP01
Plastic Processed
PVC,ABS,WPC
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Nitrided Hardness
Hv900-1000
Nitrided Case Depth
0.45-0.8mm
Nitrided Brittleness
Less Than Grade 2
Surface Roughness
Ra 0.4
Screw Straightness
0.015mm
Chrome Hardness
More Than 950hv
Thickness After Chrome
0.05-0.10mm
Alloy Depth&Hardness
0.8.-2.0mm/HRC 56-65
Transport Package
Wooden Box
Trademark
QB ChanneL
Origin
China
Production Capacity
1000PCS/Month
Product Description
QB ChanneL offers different designs of screw barrel with nitrided,chrome plating,stainless steel, bimetallic and surface spraying technology treatment to provide the suitable solution for our clients all over the world.
Gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, mixed type, double-head type, three-head type, multi head type etc.
| Technical Specification | ||||
| Model | 50/103 conical twin screw barrel | |||
| Design Details | Screw I TYPE:inside with water/oil cooling system II TYPE:outside with oil cooling system Barrel I TYPE:outside with air cooling system II TYPE:outside with copper pipe around cooling system | |||
| Accessories | Stop ring&washers to adjust the space between screw&barrel | |||
| Technical Specification | Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm | |||
