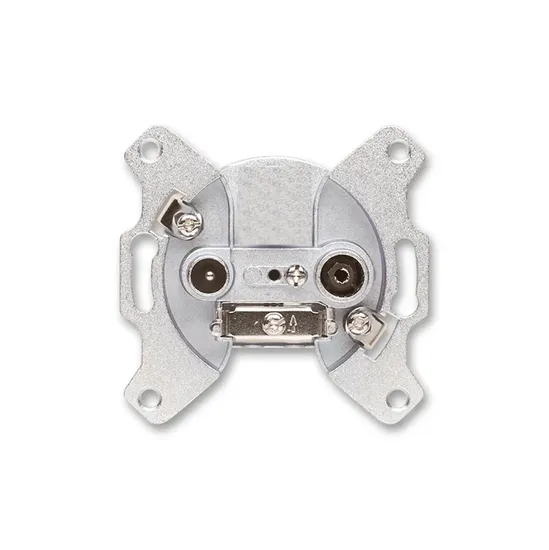

5-2450MHz TV/Sat End Socket Outlet

Product Description

15 years Professional TV Wall Socket Outlet Manufacture
Changzhou Shengshijia Electronic Co.,ltd is the manufacture with mor than 15 years factory experience. We are specialized in producing all kind of:
1. 5-2450MHZ TV, FM, SAT, TV+FM, TV+SAT, TV+FM+SAT, TV+FM+SAT+SAT End/Through-Type Wall Socket Outlet.
2. Satellite finder & satellite meter;
3. CATV attenuator/Amplifier & Satellite splitters;
4. CATV Splitter &DiSEqC switch CATV TAPS
5. Catv splitter, log splitter, power splitter, splitter
6. Catv Drop Splitter in Power Transmission & Transformer
7. Divider, Disintegration, Abruption, Distributor, Outside Splitter, Tap And Splitter, Splitter And Tap
1. High Quality Products
2. Competitive Price
3. Fast Delivery Time
4. CE, ROHS Certificate
5. OEM/ODM
6. Customized according to your requirements.
Parameter Specifications
1. IN-OUT5-2400MHz6.5dB MAX (Insertion Loss)
2. IN-SAT5-862MHz18dB MIN (Rejection)
3. 950-2400MHz7.5dB MAX (Insertion Loss)
4. 5-68MHz7.0dB MAX (Insertion Loss)
5. IN-TV120-862MHz7.5dB MAX (Insertion Loss)
6. 950-2400MHz20dB MIN (Rejection)
7. IN-FM88-108MHz8.0dB MAX (Insertion Loss)
8. Return Loss 10dB MIN
9. Power PassingIN-SAT/IN-OUT500mA (Max)
Product Features:
1. Zinc die cast housing, nickel-plated 2. All ports connector, 75Ω 3. Original and 100% new 4. All tested one by one before shipping, make sure all of our product for audio deviceis without dead spot and grey spot. 5. ODM/OEM accept 6. Competitive price and prompt delivery
Parameter description:
TV+SAT

Parameter	Frequency Range	ITEM:T	ITEM:8	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.8dB MAX	3.0dB MAX	2.5dB MAX	2.5dB MAX	2.5dB MAX
	950-2400MHz		5.5dB MAX	4.8dB MAX	4.5dB MAX	4.5dB MAX	4.0dB MAX
IN-SAT	950-2150MHz	2.5dB MAX	8.5dB MAX	11.5dB MAX	13.5dB MAX	15.0dB MAX	17.5dB MAX
	2150-2400MHz	3.0dB MAX	9.5dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-TV	5-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS	950-2400MHz	18dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS	950-2400MHz	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN
Power Passing	IN-SAT	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)
