Chinese Professional Transformer Cutting Machine Silicon Steel Cutting Equipment
| US$100,000.00-500,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SKJ-450
Automation
Automatic
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel
Shearing Thickness
Less Than 0.35mm
Shearing Width
40-450mm
Feeding Speed
240m/Min
Weight of Material
Less Than 2000kg
Punching Aperture
Customized
Positioning Mode
Cetral Positioning with Automatic Witdth Control
Total Power of Motors
21kw
Transport Package
Wooden Package
Trademark
EN-SOURCE
Origin
China, Zhejiang
HS Code
846231
Production Capacity
500
Product Description
Chinese Professional Transformer Cutting Machine Silicon Steel Cutting EquipmentI.Cutting Tool Machinery Introduction:
CNC Silicon Steel Sheet NC Transverse Shear Line is the dedicated equipment for processing the transformer cores. This machine adopts PLC control, touch screen display, and servo shearing. Press the start button after selecting the cutting type, input the cutting size and cutting number, and the equipment will automatically conduct production and when it is completed the setting amount, it will stop productions automatically.
II.Equipment Main Technical Parameters
| Item | Parameters | |||
| Model | SKJ-300 | SKJ-450 | SKJ-600 | SKJ-800 |
| Shearing thickness | ≤0.35mm | |||
| Shearing width | 40~300mm | 40~450mm | 60~640mm | 60~800mm |
| Shearing length | 340~1500mm | 300~2500mm | 600~3500mm | 600~4500mm |
| Punching aperture | customized | |||
| Feeding speed | 240m/min | |||
| Shearing accuracy | ±0.1 | |||
| Shearing angel accuracy | ±0.01° | |||
| Shearing burrs | ≤0.02mm | |||
| Outer diameter of coiled material | ≤Φ1000 mm No more thanΦ1000mm | |||
| Coil I.D. | Φ500mm | |||
| Weight of material | ≤1300Kg | ≤2000Kg | ≤3000Kg | ≤3600Kg |
| Spindle telescoping range of decoiler | Φ470~Φ520 mm | |||
| Carried material table height | ≤200mm(Containing material platform) | ≤200mm(Containing material platform) | ≤250mm(Containing material platform) | ≤250mm(Containing material platform) |
| Positioning mode | Cetral positioning with automatic witdth control | |||
| Discharge direction | Longitudinal | |||
| Total power of motors | 21Kw | 21Kw | 33Kw | 36Kw |
| Floor space | 12500×4370mm | 13500×4500mm | 17500×6000mm | 20000×7000mm |
| Total weight | 8000Kg | 10000Kg | 16000Kg | 20000Kg |
III.Machine Shearing Shape
IV.Machine Stepping

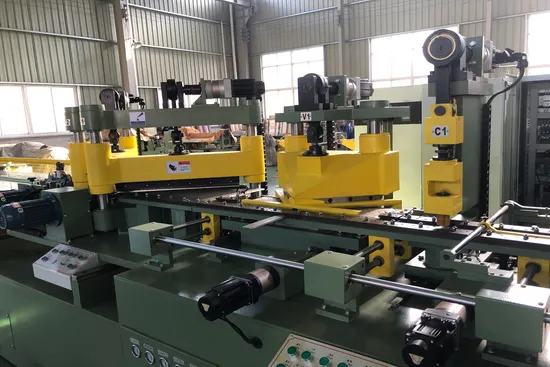

V.Equipment Details Photo:
VI. Contact Information
