Industrial Double Ribbon Homogenizer Easy-Operation Powder Material Mixing Facility

Product Description

The Horizontal Ribbon Mixers are commonly used for mixing, stirring, and blending powders, granular materials, slurries, or viscous substances. They can be equipped with a liquid spraying system and can be designed according to user requirements to operate under vacuum, pressurized, heated, or cooled conditions. This versatility meets the mixing and stirring needs of materials under various process conditions. Horizontal ribbon mixers are widely used in the chemical, pharmaceutical, food, and building materials industries. They can be used for mixing powder with powder, mixing powder with a small amount of liquid, and mixing powder with granules.

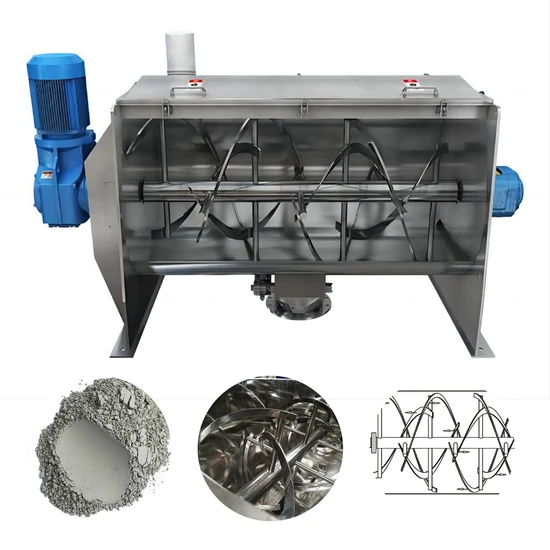

The Horizontal Ribbon Mixer consists mainly of a mixing chamber and a stirrer drive device. Inside the U-shaped tubular chamber, a double-layered, counter-rotating ribbon spiral agitator shaft is installed. The outer spiral ribbon, driven by power, pushes materials from both ends of the U-shaped chamber towards the center, while the inner spiral ribbon pushes materials from the center towards the ends, creating a convective mixing effect . The discharge port is located at the center of the bottom of the horizontal chamber. The spiral structure of the outer ribbon, combined with the rotation direction of the main shaft, drives the material inside the chamber towards the central discharge port, ensuring there are no dead corners during discharge .
Product Features
1. Cantilever Shaft Structure, with the bearings end not in contact with the material.
2. The gap between the agitator blades and the container wall is very small to prevent material adhesion .
3. A standardized agitator drive box ensures stable equipment operation and reduces maintenance costs.
4. Easy-Cleaning : Designed for quick and thorough cleaning between batches;
5. Durable Construction : Built with robust materials for long-term reliability;
6. Wide Application : Used across industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Product Model	RX-LDH-0.3	RX-LDH-0.5	RX-LDH-1	RX-LDH-2	RX-LDH-3	RX-LDH-4	RX-LDH-5	RX-LDH-6	RX-LDH-8	RX-LDH-10	RX-LDH-15	RX-LDH-20	RX-LDH-30
Effective Volume (m3)	0.18	0.3	0.6	1.2	1.8	2.4	3	3.6	4.8	6	9	12	18
Maximum Batch Output (kg)	200	300	600	1200	1800	2500	3000	3600	4800	6000	9000	12000	15000
Rotation Speed (r/min)	62	62	49	33	33	27	27	27	22	22	14	14	12
Drive Power (kW)	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110
Equipment Weight (kg)	600	900	1200	2000	2500	3500	4000	4500	5000	6000	7500	10500	13000
Length	2280	2670	3140	3860	4460	4950	5280	5530	2100	5610	5820	6300	7000
Width	680	780	980	1200	1300	1400	1550	1560	1720	1750	2000	2350	2600
Height	880	1240	1400	1650	1700	2000	2100	2200	2500	2650	2900	3160	3350

Product Display
Product StructureApplication
The Double Cone Mixer can be used in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
