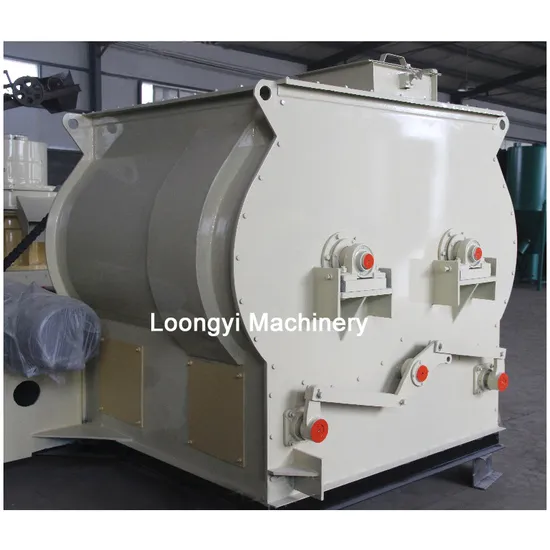

Loongyi Chemical Fertilizer Dry Powder Mixing Equipment Putty Gypsum Compost Mixing Machine

Product Description

Product Description WZ Series Double Shaft Paddle Mixer
Product Introduction:
The series machine takes a strong and high effective mixing as its features.the two minxing asles rotate reversely at an identical revolution in the horizontaldrum body. The paddles specially distributed on the axle ensure that the material move radically.circulatingly and axially,so as to form a compound motion,and in an extremely
short time,the material is mixed vevnly.Application:
Applicable to all types of building materials,chemical,detergent,coating material,Resin, glass silicon, pigment,
Pesticide, fertilizer, feed,Feed additive, wheat flour, milk powder,Spices, trace elements, Coffee,Monosodium glutamate, salt, concrete additives,Dry mixed plastics and various slurry, powder material.
Detailed Photos Product Pictures:
Product Parameters Technical Data:

Model	Work volume	Speed (rpm)	Motor power(KW)	Overall size (L*W*H) (mm)	Weight (kg)	Output size (mm)
WZ-100	60L	2*57	3	1320(L)*700(W)*700(H)	320	2*200*50
WZ-300	180L	2*57	4	1242(L)*1278(W)*1025(H)	750	2*250*60
WZ-500	300L	2*51	5.5-7.5	1412(L)*1410(W)*1230(H)	1000	2*300*80
WZ-1000	600L	2*43	11-15	1875(L)*1610(W)*1350(H)	1550	2*350*120
WZ-2000	1200L	2*43	18.5-22	2312(L)*2160(W)*1775(H)	2500	2*350*120
WZ-3000	1800L	2*36	22-30	2408(L)*2400(W)*1955(H)	2900	2*350*120
WZ-4000	2400L	2*36	30-37	2822(L)*2546(W)*2015(H)	3600	2*360*140
WZ-6000	3600L	2*29	37-45	3075(L)*2980(W)*2235(H)	5600	2*700*140
WZ-8000	4800L	2*29	45-55	3278(L)*3426(W)*2425(H)	7100	2*700*140
WZ-10000	6000L	2*29	55-75	3538(L)*3645(W)*2615(H)	8000	2*800*140
