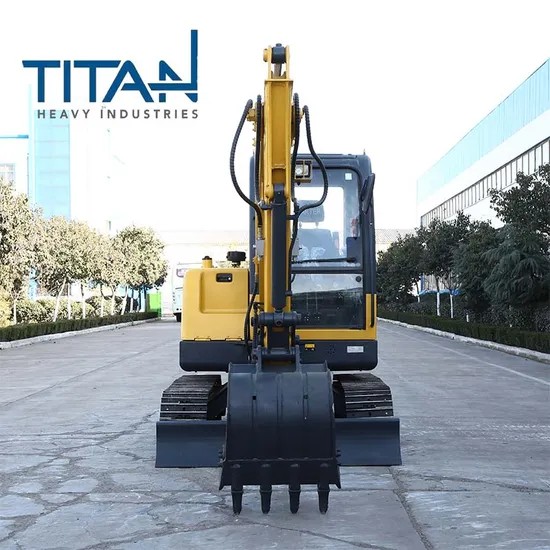

OEM Mini Earth Moving Equipment Reinforced Rubber Track To Protect Road
Basic Info.
Model NO.
TL45E
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.17m3
Size
Small-Scale
Certification
CE, ISO9001: 2000, SGS
Condition
New
Operation Weight
4200kg
Engine Model
Yanmar 4TNV88
Power
25.2kw/2200rpm
Traveling Speed
2.7/4.4(km/h)
Drawbar pulling force
35kN
Gradeability
58%(300)
Track shoes thickness
6mm
Pilot control pump
Gear type
Bucket Capacity scope
0.069-0.24m3
Number of bucket teeth
4
Bucket width
640mm
Max. digging height
5030mm
Max. dumping height
3390mm
Max. digging depth
3390mm
Max. vertical digging depth
2545mm
Transport Package
Nude in Container
Specification
5385*1750*2455mm
Trademark
TITAN
Origin
Shangdong China(Mainland)
HS Code
84295100
Production Capacity
1000 Sets One Year
Product Description
OEM Mini Earth Moving Equipment Reinforced Rubber Track To Protect RoadProduct Description
Main Features Small size and easy to transport, could be loaded onto light truck or small trailer. Famous brand hydraulic system parts ensure the stable quality. boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
| Engine | |
| Model | Yanmar 4TNV88 |
| Type | Direct injection, water cooled, natural intake |
| No. of cylinder | 4 |
| Bore and stroke | 88*90mm |
| Displacement | 2.19L |
| Power output | 25.2kw/2200rpm |
| Max. torque | 142N.m/1200rpm |
| Travel System | |
| Travel motors | KYB, Japan |
| Support roller quantities | 2*5 |
| Carrier roller quantities | 2*1 |
| Travel shoes | 2*35 |
| Travel speed | 2.7/4.4(km/h) |
| Drawbar pulling force | 35KN |
| Gradeability | 58%(30°) |
| Track shoes thickness | 6mm |
| Hydraulic System | |
| Pump | KYB, Japan |
| Type | axial piston pump+ gear pump |
| Max. discharge flow | 128(L/min) |
| Cab & Electrical System | |
| Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat; LED display, Automatic monitoring, display |
| Voltage | 12v |
| Batteries | 1x12V |
| Battery capacity | 80Ah |
| Boom cylinder | Φ90xΦ50xS552-L915 |
| Arm cylinder | Φ85xΦ50xS580-L920 |
| Bucket cylinder | Φ70xΦ45xS443-L745 |
| Fuel tank | 82 L |
| Cooling system | 12 L |
| Engine oil | 6L |
| Hydraulic oil tank | 59L Tank Oil Level |
| 85L Hydraulic System | |
| Max. discharge pressure | |
| Boom, arm and bucekt | 24.5MPa |
| Travel circuit | 15.7MPa |
| Swing circuit | 15.7MPa |
| Control circuit | 3.9MPa |
| Pilot control pump | Gear type |
| Maini control valves | KYB, Japan |
| Oil cooler | Air cooled type |
| Bucket | |
| Bucket capacity | 0.17m³(SAE) |
| Bucket capacity scope | 0.069-0.24m³ |
| Number of bucket teeth | 4 |
| Bucekt width | 640mm |
| Max. digging height | 5030mm |
| Max. dumping height | 3390mm |
| Max. digging depth | 3390mm |
| Max. vertical digging depth | 2545mm |
| Max. digging distance | 5523mm |
| Max. digging reach at ground level | 5413mm |
| Min. swing radius of work equipmenr | 2406mm |
| Bucket digging force | 23.7KN |
| Arm digging force | 21.6KN |
| Overall length | 5385mm |
| Ground contact length | 3512mm |
| Overall height(to top of boom) | 1783mm |
| Overall width | 1750mm |
| Overall height(to top of cab) | 2455mm |
| Counter weight ground clearance | 600mm |
| Min. Ground clearacne | 350mm |
| Tail swing radius | 1561mm |
| Track grounding length | 1710mm |
| Track length | 2190mm |
| Track gauge | 1400mm |
| Track width | 1750mm |
| Track shoe width | 350mm |
| Counter weight height | 850mm |
| Revolving frame width | 1600mm |
| Distance from swing center to tail | 1561mm |
| Operating Weight and Ground Pressure | |
| Operating weight(includes basic machine) | 4200kg |
| Ground pressure | 36KPa |
Attachment
Packing&Shipping
Application
TL10E excavator with compact design, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse.
OUR SERVICE
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
