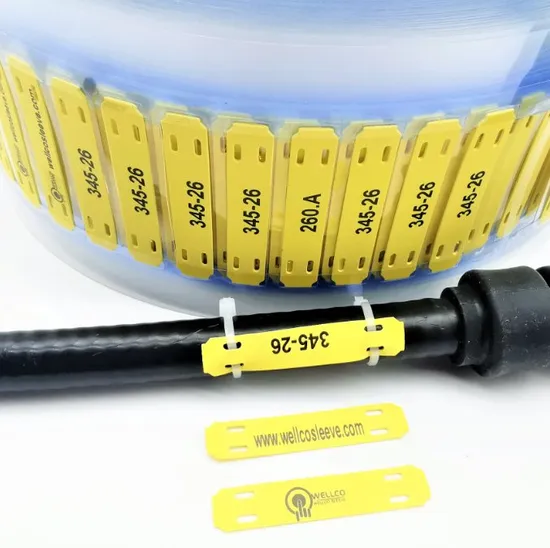

Oil Resistant Heat Shrink Identification Tag for Cable Marker

Product Description

Product Description
Special designed to meet the requirements of high performance identification of wire and cables where exposure to organic fluids, especially oils, is required. It is made of superior fluid resistant flame retardant polyolefin with excellent electrical, physical, chemical and printing properties. It can be easily printed by marker printers with permanent identification widely used in aerospace, military, railway, construction industry, etc.
· Operating temperature: -55ºC ~ 125ºC · Standard color: White Yellow
· Other colors are available upon request. · Meet the requirements of aerospace and railway use.
· Excellent printing property, permanent identification to meet SAE AS81531.
· Excellent electrical, physical, chemical and printing properties.
· RoHS and REACH compliant.

Property	Requirement	Test method	Typical data
Longitudinal shrinkage	≤10%	ASTM D 2671	≤5%
Tensile strength	10.4 MPa min.	ASTM D 638	≥12MPa
Elongation at break	200% min.	ASTM D 638	≥400%
Elongation after ageing (175ºC,168hrs)	100% min.	ASTM D 638	≥400%
Heat shock	No crack	ASTM D 2671	No crack
Low-temperature flexibility(-55ºC,4hrs)	No crack	ASTM D 2671	No crack
Dielectric voltage withstand	2500V,60sec, no breakdown	ASTM D 2671	No breakdown
Dielectric strength	19.7 KV/mm min.	ASTM D 2671	≥ 25 KV/mm
Volume resistivity	1014Ω·cm min.	ASTM D 876	≥1014Ω·cm
Corrosion	No corrosion	ASTM D 2671	No corrosion
Flammability	Self-extinguishing within 1 minute	AMS-DTL-23053	pass
Printing performance	50 rubs, legible 30 strokes, legible	SAE AS81531 MIL- STD-202	pass
Fluid resistance	Printing legible	SAE AS81531	pass

Size(mm)	Tag Marker height (mm)	Tag Marker length (mm)
10.4x45	10.4	45
10.4x53	10.4	53
10.4x58	10.4	58
10.4x70	10.4	70
10.4x90	10.4	90
15x45	15	45
15x53	15	53
15x58	15	58
15x70	15	70
15x90	15	90
20.3x45	20.3	45
20.3x53	20.3	53
20.3x58	20.3	58
20.3x70	20.3	70
20.3x90	20.3	90
25.4x45	25.4	45
25.4x53	25.4	53
25.4x58	25.4	58
25.4x70	25.4	70
25.4x90	25.4	90
