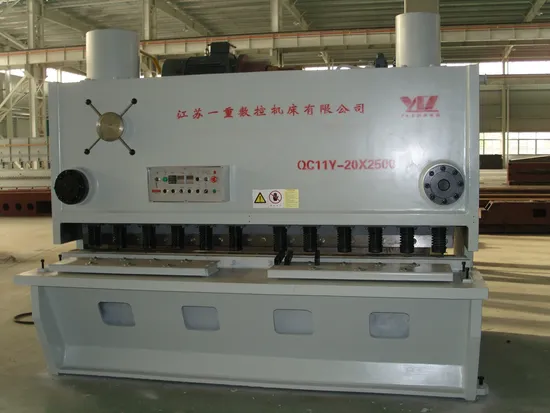

Metal Guillotine Machine Automatic Shearing Machine Made in China
| US$80,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Customzied
Certification
CE, ISO 9001:2000, ISO 9001:2008, RoHS
Condition
New
Warranty
1 Year
Gap Between Upper and Lower Blade
70mm (Empty Gap Could Be Higher)
Blade Length
2600mm(Customized Size Contact with Supplier)
Transport Package
Plastic Film
Specification
50*2500mm
Trademark
jsyzsk1
Origin
Yangzhou
HS Code
8462330000
Production Capacity
100sets Per Year
Product Description
Metal guillotine machine automatic shearing machine
Product Description
Main technical parameters of this Metal guillotine machine automatic shearing machine:
| No. | item | parameter | unit |
| 1 | Blade clearance | 70 | mm |
| 2 | Max. Cutting thickness(carbon steel) | 50 | mm |
| 3 | Max. Cutting thickness(stainless steel) | 25 | mm |
| 4 | Max. Cutting width | 2500 | mm |
| 5 | No. of stroke | 5 | times/min |
| 6 | Blade length | 2600 | mm |
| 7 | Cutting angle | 1°30′-4° | angle |
| 8 | Back gauge distance adjustment | 20-1000 | mm |
| 9 | Main motor model | Y132M-4 | |
| 10 | Main motor power | 55 | Kw |
| 11 | Overall Dimensions | 3350*2550*3550 | mm |
| 12 | The weight of machine | about 45T | Ton |
| Main motor, Simens | Low noise gear pump | Blade clearance control |
| Oil cylinder | Spherical support | Fence |
| Electrical components | AC motor | Workbench |
Main configuration list of this Metal guillotine machine automatic shearing machine:
| No. | Item |
| 1 | Oil pump, low noise gear pump, Chengjie, China |
| 2 | Valve, Yeer, Shanghai, China |
| 3 | Electrical components, Schneide, France |
| 4 | Tubing, EMB, Germany |
| 5 | Blade material:6Crw2si |
| 6 | Ball screw linear guide, Hiwin,Taiwan, |
| 7 | E21S controller,China(DELEM DAC310T,DAC360T optional) |
| 8 | Rapid and precise blade clearance adjustment by single handle on the side frame |
| 9 | Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel |
| 10 | Cutting Line Illumination and wire for shadow line cutting |
| 11 | Counter of Strokes, Cutting Length Adjustment |
| 12 | Hydraulic and Electrical overload protection |
| 13 | Squaring Arm and Front Support Arms |
| 14 | Delta inverter with ball screw and polished rod with 0,05 mm accuracy. |
| 15 | Light guards(option $300.00) |
| 16 | Backguage pneumatic support(optional) |
Company Profile Our company:
Jiangsu Yizhong CNC Machine Tool (Group) Co., Ltd is a Top machine tool factories for plate processing in China, which set up in 2006, located in Chengbei industrial area, Yangzhou city, Jiangsu province. It covers an area of 498700 square meters and nine production lines. We' re also the National Torch Plan and High-tech enterprise.
Our main products includes Hydraulic guillotine shearing machine ,Plate rolling mchine (also production line ),Plate hydraulic press machine ,Plate leveling machine ,and plate planer and milling machine . Meanwhile , with a powerful technician team, OEM machine is our strong suit .
With many years' hard-working, we have built long term and close cooperation relationships with many friends, such as Russia, Australia, United Kingdom, Italy, South Americas, Egypt, India and so on,welcome
your consulting
