New Agricultural Machinery Hot Sale Working Width 2.0m Middle Duty Hing Offset Disc Harrow

Product Description

Product Description
SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
------The drafting Unit of the Chinese Standard For Disc Harrows And Disc Ploughs

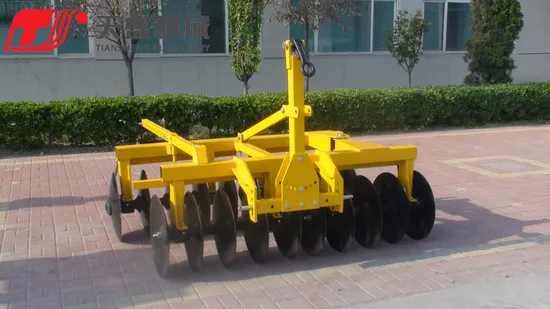

Name:1BTS SERIES OF HING OFFSET DISC HARROW
This kind of hinged offset disc harrow is specially designed, manufactured and borrowed according the features of foreign disc plough, it is mounted or trailed with tractor in your different need. This hinged disc harrow can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
It is an amphibious disc harrow for 30-110hp 4-wheels tractor.The disc blade can be flat or notched for your need.The working depth can be adjusted freely.65Mn spring steel disc blade, HRC: 38-44.

Model	Unit	1BTS-6-6	1BTS-7-7	1BTS-8-8	1BTS-9-9	1BTS-10-10	1BTS-11-11	1BTS-12-12
Working width	m	1.4	1.6	1.8	2.0	2.3	2.5	2.7
Working depth	mm	100-150	100-150	100-150	100-150	100-150	100-150	100-150
No. of discs	pcs	12	14	16	18	20	22	24
Disc diameter	mm	560	560	560	560	560	560	560
Weight	kg	470	520	570	620	680	730	800
Tractor power	hp	30-40	40-50	50-60	60-70	70-80	80-100	90-110
Linkage		Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted

Detailed Photos

Company Profile
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.
