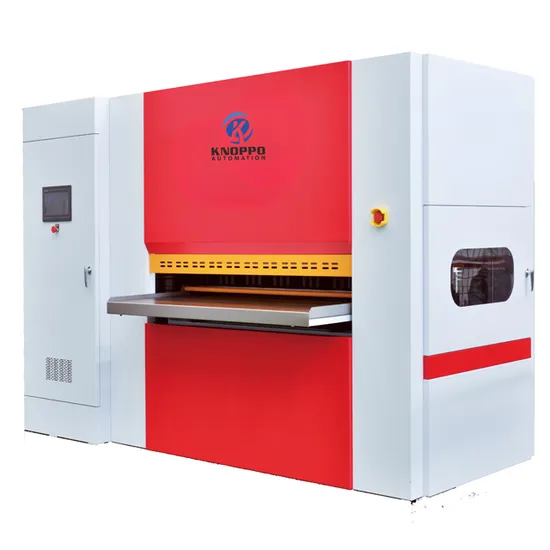

Metal Sheet Thick Steel Plate Leveling Machine and Hydraulic Leveler Straightener for Thick Cutting Parts

Product Description

Sheets Steel Plate Sheet Metal Processing Straightener machine for laser cutting parts

Why do you need leveling process after lasering or plasma-cutting or after stamping? Thermal manufacturing processes such as laser, oxy-fuel or plasma cutting introduce a great deal of heat into the material. The resulting temperature gradient within the material leads to stresses and edge hardening. Parts and sheets cut by such methods are distorted.
PRODUCT SPECIFICATIONS

Specifications / models	G80-1600	G100-1600	G125-1600
Leveling thickness	2-15mm	3-20mm	5-30mm
Leveling Width	≤1600mm (Equipment opening width: 1700mm)	≤1600mm (Equipment opening width: 1700mm)	≤1600mm (Equipment opening width: 1700mm)
The diameter of leveling roller / quantity	Φ80 Top 9 + bottom 10=19 roller	Φ100 Top 8 + bottom 9=17 roll	Φ125 Top 7 + bottom 8=15 roll
Driving Type of leveling roller	AC deceleration motor * 2 22 KW * 2 on the left	AC deceleration motor * 2 30 KW * 2 on the left	AC deceleration motor * 2 37 Kw * 2 on the left
Feeding Speed	0-10 m / minute, can be adjusted	0-10 m / minute, can be adjusted	0-10 m / minute, can be adjusted
Adjustment of Leveling speed	Frequency converter * 2 sets Electronic speed control up and down roll synchronization, overload automatic shutdown function	Frequency converter * 2 sets Electronic speed control up and down roll synchronization, overload automatic shutdown function	Frequency converter * 2 sets Electronic speed control up and down roll synchronization, overload automatic shutdown function
Roll gap measurement and display	Displacement sensors of * 4 Touch screen display, the PLC controls the electrical	Displacement sensors of * 4 Touch screen display, the PLC controls the electrical	Displacement sensors of * 4 Touch screen display, the PLC controls the electrical
Roller gap adjustment	Servo motor, CNC adjustment; Worm wheel screw lift; Automatically adjust up and down	Servo motor, CNC adjustment; Worm wheel screw lift; Automatically adjust up and down	Servo motor, CNC adjustment; Worm wheel screw lift; Automatically adjust up and down
leveling accuracy (flatness)	0.5mm / m2	0.5mm / m2	0.5mm / m2
weight	18T	20T	25T
Dimensions	3800*2300*2400mm	4000x2400x2500mm	4200*2500*2500mm

Sample
Before And After of leveling
Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing metal processing intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 metal processing systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, laser welding machine , laser cleaning machine , deburring machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.
